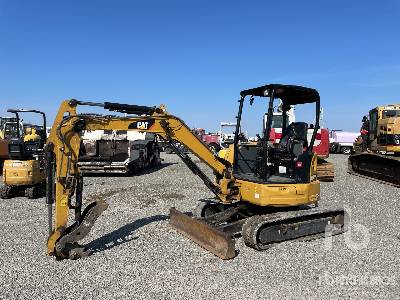

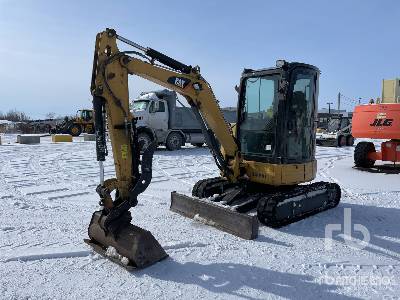

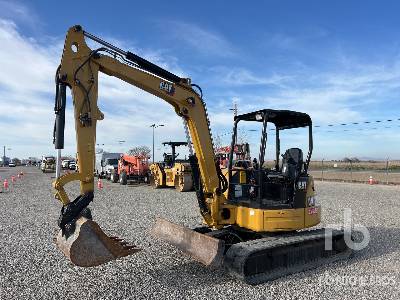

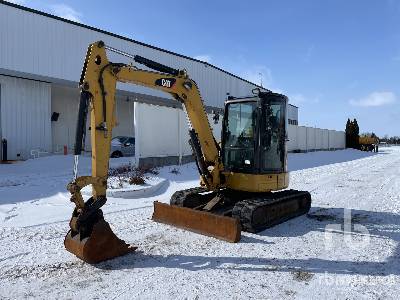

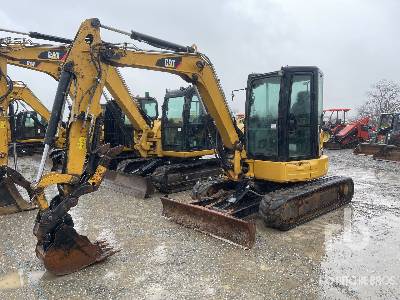

Caterpillar 302.5C Mini Excavator

Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
MODEL.UNITS

Dimensions

Boom/Stick Option (Hex) 1

A

Shipping Length Of Unit

14.83ft in

I

Max Cutting Height

14.25ft in

C

Shipping Height Of Unit

7.5ft in

J

Max Loading Height

10.17ft in

K

Max Reach Along Ground

14.92ft in

L

Max Vertical Wall Digging Depth

6.25ft in

M

Max Digging Depth

8.67ft in

Boom/Stick Option (Hex) 1

Standard Stick

Boom/Stick Option (Hex) 2

I

Max Cutting Height

14.83ft in

A

Shipping Length Of Unit

14.83ft in

J

Max Loading Height

10.75ft in

C

Shipping Height Of Unit

7.5ft in

K

Max Reach Along Ground

15.75ft in

L

Max Vertical Wall Digging Depth

7.17ft in

M

Max Digging Depth

9.58ft in

Boom/Stick Option (Hex) 2

Long Stick

Dimensions

B

Width To Outside Of Tracks

4.75ft in

D

Length Of Track On Ground

6.33ft in

E

Ground Clearance

0.87ft in

G

Height To Top Of Cab

7.5ft in

H

Tail Swing Radius

4.17ft in

F

Track Gauge

3.77ft in

Maximum Dump Height - Long Stick

10.76ft in

Maximum Dump Height - Standard Stick

10.2ft in

Maximum Horizontal Reach - Long Stick

10.76ft in

Maximum Horizontal Reach - Standard Stick

10.2ft in

Maximum Reach - Ground Level - Standard Stick

14.91ft in

Maximum Vertical Dig Depth - Standard Stick

6.3ft in

Removal Counterweight Clearance

1.75ft in

Shipping Height

7.55ft in

Maximum Cutting Height - Long Stick

14.86ft in

Length - Center Of Rollers

14.91 ft

Shipping Length

14.8ft in

Height - Over Cab

7.55ft in

Swing Radius - Rear

4.2ft in

Maximum Cutting Height - Standard Stick

14.29ft in

Maximum Digging Depth - Long Stick

16.18ft in

Maximum Digging Depth - Standard Stick

8.66ft in

Track Shoe Width

0.98ft in

Transport Width

4.76ft in

Width - Over Track

4.76ft in

Undercarriage

N

Shoe Size

12in

F

Track Gauge

3.75ft in

Max Travel Speed

3.1mph


Specifications

Swing System

Swing System Type

Hydraulic motor-driven

Machine Swing Speed

9.5rpm

Boom Swing - Left - Without Stop

90degrees

Boom Swing - Left - With Stop

54degrees

Boom Swing - Right

48degrees

Engine

Number Of Cylinders

3

Engine Make

2251

Engine Model

S3L2

Gross Power

26.7hp

Net Power

24.9hp

Power Measured @

2300rpm

Displacement

80.4cu in

Engine Model

Mitsubishi S3L2 NA Diesel

Operational

Operating Weight

6283lb

Fuel Capacity

10gal

Cooling System Fluid Capacity

1.2gal

Hydraulic System Fluid Capacity

13.2gal

Engine Oil Capacity

1.7gal

Operating Voltage

12V

Alternator Supplied Amperage

50amps

Hydraulic System Relief Valve Pressure

3205psi

Hydraulic Pump Flow Capacity

8.2gal/min

Swing Mechanism

Swing Speed

9.5rpm

Weights

Operating Weight

6052lb

Operating Weight - With Cab

6283lb

Buckets

Reference Bucket Capacity

0.1yd3

Minimum Bucket Capacity

0.1yd3

Maximum Bucket Capacity

0.2yd3

Blade

Height

12.6in

Width

4.8ft in

Lift Height

11.2in

Dig Depth

16.5in

Hydraulic System

Operating Pressure - Swing

2524 psi

Operating Pressure - Equipment

3205 psi

Operating Pressure - Travel

3205 psi

Digging Force - Stick - Standard

3439.6lb

Digging Force - Stick - Long

2945lb

Digging Force - Bucket

5440.4lb

Auxiliary Circuits - Primary - At 174 Bar

16.9 gal/min

Auxiliary Circuits - Secondary - At 174 Bar

3.8 gal/min

Pump - Piston (Tandem)

8.2 gal/min

Pump - Gear (Dual) (Swing, Pilot)

4.9 gal/min

Service Refill Capacities

Cooling System

1.2gal

Fuel Tank

10gal

Hydraulic Tank

9.5gal

Hydraulic System

13.2gal

Engine Oil

1.7gal

Engine Dimensions

Bore

3.1in

Stroke

3.6in

Displacement

80.4cu in

Sound Levels

Cab

81 dB(A)

Canopy

81 dB(A)

Msc Comments

Msc Spec Date

8/05

Travel System

Maximum Traction Force - High Speed

2788lb

Maximum Traction Force - Low Speed

5305lb

Gradeability - Maximum - High

30degrees

Travel Speed - High

3.1mph

Travel Speed - Low

1.6mph
