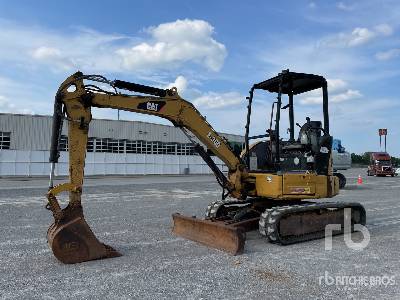

Caterpillar 302.5 Mini Excavator

Caterpillar 302.5 Mini Excavator Specs front
Caterpillar 302.5 Mini Excavator Specs front
Caterpillar 302.5 Mini Excavator Specs side
Caterpillar 302.5 Mini Excavator Specs side
Caterpillar 302.5 Mini Excavator Specs extended
Caterpillar 302.5 Mini Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

I

Max Cutting Height

14.38 ft in

J

Max Loading Height

10.18 ft in

K

Max Reach Along Ground

14.97 ft in

L

Max Vertical Wall Digging Depth

6.96 ft in

M

Max Digging Depth

8.7 ft in

Boom/Stick Option (HEX) 2

I

Max Cutting Height

14.83 ft in

J

Max Loading Height

10.67 ft in

K

Max Reach Along Ground

16.18 ft in

L

Max Vertical Wall Digging Depth

7.81 ft in

M

Max Digging Depth

9.68 ft in

Dimensions

B

Width to Outside of Tracks

3.75 ft in

D

Length of Track on Ground

4.83 ft in

E

Ground Clearance

1.02 ft in

G

Height to Top of Cab

7.55 ft in

H

Tail Swing Radius

4.2 ft in

Undercarriage

F

Track Gauge

3.78 ft in

N

Shoe Size

11.82 in


Specifications

Engine

Engine Model

3013

Gross Power

22.9 hp

Displacement

91.3 cu in

Operational

Operating Weight

6027.5 lb

Fuel Capacity

11 gal

Hydraulic System Fluid Capacity

13.3 gal

Hydraulic System Relief Valve Pressure

2987 psi

Undercarriage

Shoe Size

11.9 in

Max Travel Speed

2.8 mph

Drawbar Pull

4950 lb

Track Gauge

3.8 ft in

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

boom w/ stick 1110mm

Max Digging Depth

8.7 ft in

Max Reach Along Ground

15 ft in

Max Cutting Height

14.4 ft in

Max Loading Height

10.2 ft in

Max Vertical Wall Digging Depth

7 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

boom w/ stick 1410mm

Max Digging Depth

9.7 ft in

Max Reach Along Ground

16.2 ft in

Max Cutting Height

14.9 ft in

Max Loading Height

10.7 ft in

Max Vertical Wall Digging Depth

7.9 ft in

Dimensions

Width to Outside of Tracks

3.8 ft in

Height to Top of Cab

7.6 ft in

Ground Clearance

1.1 ft in

Removal Counterweight Clearance

1.9 ft in

Tail Swing Radius

4.2 ft in

Length of Track on Ground

4.9 ft in
