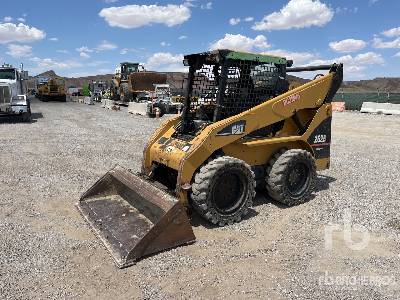

Caterpillar 262B Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Units

Dimensions

Dimensions

A

Length with Bucket

11.87 ft in

B

Width Over Tires

6.01 ft in

C

Height to Top of Cab

6.77 ft in

D

Wheelbase

4.03 ft in

E

Ground Clearance

8 in

F

Length w/o Bucket

9.53 ft in

G

Clearance at Max Lift and Dump

7.95 ft in

H

Reach at Max Lift and Dump

32.64 in


Specifications

Engine

Engine Make

2236

Engine Model

3044C DIT

Gross Power

82 hp

Net Power

79.2 hp

Aspiration

turbocharged

Bore

3.7 in

Stroke

4.7 in

Gross Power - SAE J1995

82 hp

Engine Model

Cat 3044C DIT

Engine Power - ISO 14396

80 hp

Net Power - EEC 80/1269

78 hp

Net Power - ISO 9249 EEC

78 hp

Net Power - SAE 1349

78 hp

Net Flywheel Power

78 hp

Operational

Operational Weight

7859.5 lb

Fuel Capacity

23.8 gal

Cooling System Fluid Capacity

2.7 gal

Engine Oil Fluid Capacity

2.7 gal

Hydraulic System Fluid Capacity

14.1 gal

Chain Box Fluid Capacity - each side

2.2 gal

Max Speed

7.3 mph

Tire Size

12x16.5 10PR

Operating Voltage

12 V

Alternator Supplied Amperage

90 amps

Power Train

Travel Speed Forward

7.2 mph

Travel Speed Reverse

7.2 mph

Travel Speed Reverse - 2-Speed Option

11 mph

Travel Speed Forward - 2-Speed Option

11 mph

Weights

Operating Weight

7861 lb

Loader

Breakout Force

5507.2

Operating Load Rating

2698.5 lb

Tipping Angle

5399.2 degrees

Hydraulic System

Hydraulic Flow (1)

Standard flow

Hydraulic Power

42.8 hp

Maximum Loader Hydraulic Flow

21.4 gal/min

Maximum Loader Hydraulic Pressure

3335.87 psi

Loader Hydraulic Pressure

3335 psi

Loader Hydraulic Flow

22 gal/min

Hydraulic Flow (2)

Standard

Hydraulic

Pump Flow Capacity

22 gal/min

Relief Valve Pressure

3335.9 psi

Dimensions

Length with Bucket

11.9 ft in

Length w/o Bucket

9.6 ft in

Width Over Tires

6.1 ft in

Height to Top of Cab

6.8 ft in

Clearance at Max Lift and Dump

8 ft in

Wheelbase

4.1 ft in

Ground Clearance

8 in

Reach at Max Lift and Dump

32.7 in

Turning Radius from Center - machine rear

66.8 in

Turning Radius from Center - inc bucket

85.9 in

Wheel Base

4 ft in

Bucket Pin Height - Maximum Lift

10.6 ft in

Height - Top of Cab

7 ft in

Length - Without Bucket

114 in

Length - With Bucket on Ground

142 in

Maximum Overall Height

160 in

Bucket Pin Height - Carry Position

8.4 in

Clearance at Maximum Lift and Dump

95 in

Turn Radius from Center - Rear

67 in

Turn Radius from Center - Coupler

52 in

Turn Radius from Center - Bucket

86 in

Maximum Reach - With Arms Parallel

52 in

Bucket Pin Reach - Maximum Lift

13.6 in

Reach - Maximum Lift/Dump

33 in

Vehicle Width over Tires

72 in

Bumper Overhang - Rear Axle

41 in

Operating Specifications

Rated Operating Capacity with Optional Counterweight

2750 lb

Tipping Load

5613 lb

Breakout Force - Tilt Cylinder

5508 lb

Breakout Force - Lift Cylinder

5229.4 lb

Rated Operating Capacity

2700 lb

Service Refill Capacities

Cooling System

2.6 gal

Fuel Tank

23.8 gal

Hydraulic Tank

9.2 gal

Engine Crankcase

2.6 gal

Hydraulic System

14 gal

Chain Box - Each Side

2.1 gal

Cab

ROPS

SAE J1040 MAY94 and ISO3471:1994

FOPS

SAE J/ISO 3449 APR98 Level I and ISO3449:1992 Level I

FOPS Level II

SAE J/ISO 3449 APR98 Level II and ISO 3449:1992 Level II (optional)
