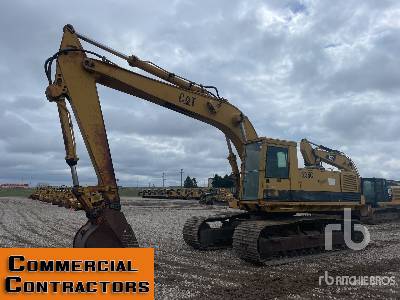

Caterpillar 235C Wide Gauge Trencher Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
I
Max Cutting Height
32.85ft in
J
Max Loading Height
22.25ft in
K
Max Reach Along Ground
39.38ft in
L
Max Vertical Wall Digging Depth
18.9ft in
M
Max Digging Depth
26.42ft in
Boom/Stick Option (Hex) 1
Stick 12'0" (3660mm)
Dimensions
E
Ground Clearance
1.74ft in
G
Height To Top Of Cab
11.16ft in
B
Width To Outside Of Tracks
12.37ft in
H
Tail Swing Radius
11.19ft in
Removal Counterweight Clearance
4.07ft in
Undercarriage
F
Track Gauge
10.67ft in
N
Shoe Size
29.93in
Max Travel Speed
1.99mph
Drawbar Pull
69690.78lb
Ground Pressure
9.7psi
Specifications
Engine
Engine Make
2236
Engine Model
3306
Gross Power
250hp
Displacement
640.8cu in
Operational
Operating Weight
101831.6lb
Fuel Capacity
130gal
Hydraulic System Relief Valve Pressure
4800psi
Hydraulic Pump Flow Capacity
184.4gal/min
