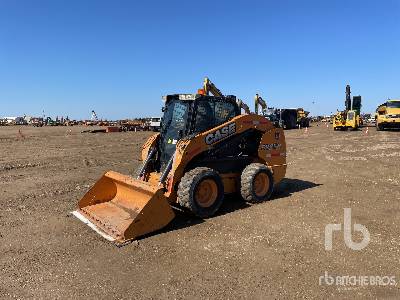

Case SV250 Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
MODEL.UNITS

Dimensions

Dimensions

A

Length With Bucket

11.82ft in

B

Width Over Tires

5.58ft in

E

Ground Clearance

8in

C

Height To Top Of Cab

6.57ft in

D

Wheelbase

4.27ft in

F

Length W/O Bucket

9.85ft in

G

Clearance At Max Lift And Dump

8.54ft in

H

Reach At Max Lift And Dump

29.3in

Turning Radius From Center - Machine Rear

70.41in

Turning Radius From Center - Inc Bucket

83.8in


Specifications

Engine

Number Of Cylinders

4

Engine Make

2239

Engine Model

432T/M3

Gross Power

82hp

Net Power

76hp

Power Measured @

2500rpm

Max Torque

225lb ft

Torque Measured @

1400rpm

Aspiration

Turbocharged

Displacement

195cu in

Operational

Operational Weight

8000lb

Fuel Capacity

25.5gal

Engine Oil Fluid Capacity

2.7gal

Hydraulic System Fluid Capacity

6.1gal

Max Speed

11.9mph

Chain Box Fluid Capacity - Each Side

2gal

Operating Speed

7.2mph

Tire Size

12 x 16.5

Operating Voltage

12V

Alternator Supplied Amperage

95amps

Loader

Operating Load Rating

2500lb

Tipping Angle

5000degrees

Bucket Capacity

0.7yd3

Bucket Width

72in

Hydraulic

Pump Type

Gear

Pump Flow Capacity

12.2gal/min

Relief Valve Pressure

3000psi
