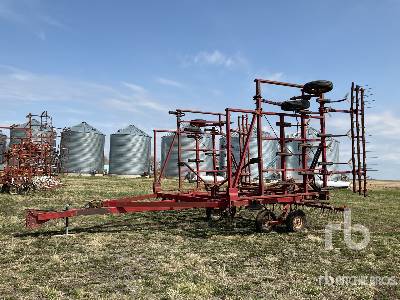

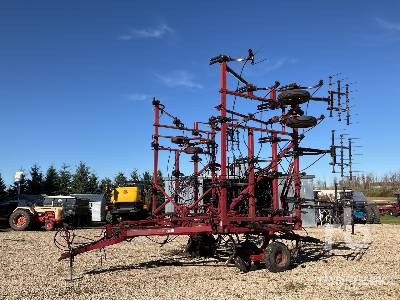

Case IH Crumbler 22.5ft Cultivator

Case IH Crumbler 22.5ft Cultivator Specs side
Case IH Crumbler 22.5ft Cultivator Specs side
Case IH Crumbler 22.5ft Cultivator Specs back
Case IH Crumbler 22.5ft Cultivator Specs back
Case IH Crumbler 22.5ft Cultivator Specs top
Case IH Crumbler 22.5ft Cultivator Specs top
Units

Dimensions

Dimensions

B

Transport Width

15.42 ft in

C

Transport Height

8 ft in


Specifications

Frame

Frame Type

Single-fold

Min Working Width

22.5 ft in

Max Working Width

22.5 ft in

Main Frame Width

12.5 ft in

Operational

Row/Rank Spacing

15 in

Max Speed

8 mph

Harrow

Spike/Tine Length

16 in

Effective Spike/Tine Spacing

4 in

Basket Diameter

14 in

Bar Size

1/4 x 1.25 in.

Basket Down Pressure

60 lb

Dimensions

Transport Width

15.5 ft in

Transport Height

8 ft in

PTO Power Required per Width Ft.

1 hp
