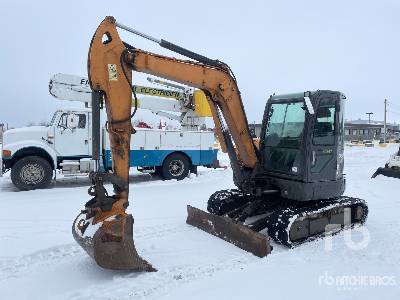

Case CX33C Mini Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
15.23ft in
I
Max Cutting Height
15.26ft in
C
Shipping Height Of Unit
8.21ft in
J
Max Loading Height
10.75ft in
K
Max Reach Along Ground
16.61ft in
L
Max Vertical Wall Digging Depth
6.67ft in
M
Max Digging Depth
9.96ft in
Boom/Stick Option (Hex) 1
4 ft 3 in (1.3 m) Arm
Max.Dumping Height
10.75ft in
Dimensions
B
Width To Outside Of Tracks
5.09ft in
D
Length Of Track On Ground
5.58ft in
E
Ground Clearance
0.96ft in
G
Height To Top Of Cab
8.21ft in
H
Tail Swing Radius
2.55ft in
Undercarriage
Number Of Track Rollers Per Side
4
Specifications
Engine
Fuel
Diesel
Fuel Injection
Mechanical with electronic governor
Emissions Level
Tier 4 Final
Number Of Cylinders
3
Max Speed
2.6mph
Engine Model
Yanmar 3TNV88F-ESHYB
Gross Power
24.4hp
Cooling System
Water-cooled
Net Power
23.7hp
Power Measured @
2200rpm
Displacement
100.2cu in
Max Torque
69.5lb ft
Torque Measured @
1200rpm
Drive Train
Max Drawbar Pull
6834.2lb
Maximum Traction Force
6835lb
Gradeability
30degrees
Ground Pressure
4psi
Lift System
Bucket Breakout Force
6901.7lb
Lift Over Side Max. Reach
485.1lb
Lift Over End Max. Reach - Lbs
1675.6lb
Capacities
Engine Oil W/ Filter Change
1.8gal
Fuel Tank
8gal
Hydraulic Tank
14.6gal
Radiator
1.5gal
Operational
Operating Weight
7396.6lb
Electrical
Alternator
55 amp
Voltage
12V
Battery
1 x 12 V x 70 Ah
Swing Mechanism
Swing Speed
9rpm
Hydraulic System
Main Pump - Maximum Flow
19.8gal/min
Relief Pressure
3270 psi, 230 bar
Boom
Arm Length
7.1ft in
Boom Length
4.3ft in
