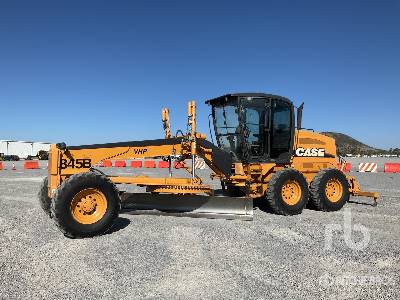

Case 845B DHP Motor Grader

Case 845B DHP Motor Grader Specs front
Case 845B DHP Motor Grader Specs front
Case 845B DHP Motor Grader Specs side
Case 845B DHP Motor Grader Specs side
Case 845B DHP Motor Grader Specs back
Case 845B DHP Motor Grader Specs back
Units

Dimensions

Dimensions

A

Overall Length

28 ft in

B

Width Over Tires

8.2 ft in

D

Wheelbase

20.41 ft in

E

Rear Ground Clearance

1.25 ft in

F

Front Ground Clearance

2.05 ft in

G

Tandem Axle Wheelbase

5.16 ft in

H

Blade Base

8.41 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2239

Engine Model

FPT 6.7L

Power Measured @

2200 rpm

Torque Measured @

1500 rpm

Net Power Gears 7-8

160 hp

Net Torque Gears 7-8

560 lb ft

Displacement

409 cu in

Aspiration

Turbocharged with air to air aftercooler

Operational

Std Operation Weight - Front Axle

9912 lb

Std Operation Weight - Rear Axle

22287 lb

Std Operation Weight - Total

32199 lb

Fuel Capacity

90 gal

Oil System Fluid Capacity

18.5 gal

Cooling System Fluid Capacity

10.5 gal

Hydraulic System Fluid Capacity

47.5 gal

Transmission Fluid Capacity

21 gal

Rear Diff/Final Drive Fluid Capacity

10.5 gal

Circle Gearbox Fluid Capacity

0.8 gal

Tandem Case Fluid Capacity (each)

15.9 gal

Tire Size

14.0 x 24-10 PR

Operating Voltage

24 V

Alternator Supplied Amperage

90 amps

Steering

Articulation Angle

25 degrees

Turning Radius

23.8 ft in

Transmission

Transmission Type

direct drive powershift

Number of Gears - Forward

8

Number of Gears - Reverse

4

Max Speed - Forward

26.6 mph

Max Speed - Reverse

17.7 mph

Front Axle

Wheel Lean

20 degrees

Oscillation - Total

15.3 degrees

Moldboard

Moldboard Width

12 ft in

Moldboard Height

22 in

Moldboard Thickness

0.9 in

Max Depth of Cut

28 in

Side Shift Left

21 in

Side Shift Right

27 in

Blade Down Pressure

16854 lb

Hydraulic System

Pump Type

load sensing piston

Pump Flow

49 gal/min

Circle

Diameter

69 in

Rotation

360 degrees

Max Lift Above Ground

17.5 in

Dimensions

Height to Top of Isomount Cab

11 ft in

Overall Length

28 ft in

Width Over Tires

8.2 ft in

Wheelbase

20.5 ft in

Blade Base

8.5 ft in

Tandem Axle Wheelbase

5.2 ft in

Rear Ground Clearance

1.3 ft in

Front Ground Clearance

2.1 ft in
