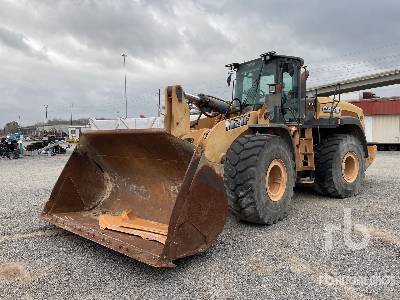

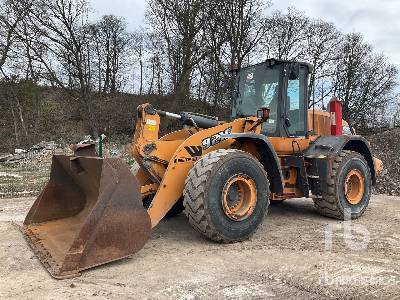

Case 821F Wheel Loader

Case 821F Wheel Loader Specs front
Case 821F Wheel Loader Specs front
Case 821F Wheel Loader Specs side
Case 821F Wheel Loader Specs side
Case 821F Wheel Loader Specs back
Case 821F Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

9.79 ft in

Dimensions

A

Length with Bucket on Ground

25.79 ft in

B

Width Over Tires

9.47 ft in

C

Height to Top of Cab

11.32 ft in

D

Wheelbase

10.96 ft in

E

Ground Clearance

1.37 ft in

F

Hinge Pin - Max Height

13.53 ft in

H

Reach at Max Lift and Dump

3.62 ft in


Specifications

Hydraulic cycle times (unloaded)

Total cycle time

9.9 sec

Engine

Emissions level

Tier 4

Engine speed - Rated speed, full load

2000 rpm

Number of Cylinders

6

Max. torque ISO14396

873.3 lb ft

Engine Model

FPT F4HFE613

Net Power

205 hp

Gross Power

231 hp

Power Measured @

1800 rpm

Displacement

411 cu in

Torque Measured @

1300 rpm

Max Torque

845

Torque Rise

47 %

Aspiration

Turbocharged

Alternator

120 amps

Operational

Operating Weight

38874 lb

Fuel Capacity

76.1 gal

Hydraulic System Fluid Capacity

47 gal

Engine Oil Fluid Capacity

4 gal

Cooling System Fluid Capacity

8 gal

Transmission Fluid Capacity

9.1 gal

Front Axle/Diff Fluid Capacity

10.6 gal

Rear Axle/Diff Fluid Capacity

10.6 gal

Static Tipping Weight

27224.9 lb

Turning Radius

19.8 ft in

Operating Voltage

24 V

Alternator Supplied Amperage

65 amps

Rear Axle Oscillation

24 degrees

Tire Size

23.5 x 25 L3

Transmission

Transmission Type

Powershift

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

22.7 mph

Max Speed - Reverse

15.2 mph

Hydraulic System

Steering pump type

Articulation

Maximum system pressure

3625 psi

Pump Type

Axial Piston Pump

Relief Valve Setting

3625

Pump Flow Capacity

31.8 gal/min

Raise Time

6.2 sec

Dump Time

1.2 sec

Lower Time

2.5 sec

Bucket

Breakout Force

35317.5 lb

Dump Clearance at Max Raise

9.8 ft in

Bucket Width

10 ft in

Bucket Capacity - heaped

4.1 yd3

Bucket Capacity - struck

3.6 yd3

Brakes

Service brake

Wet Multi Disc

Dimensions

Dump reach @ full height, 45° dump: Bucket

3.7 ft in

Length with Bucket on Ground

25.8 ft in

Width Over Tires

9.5 ft in

Height to Top of Cab

11.4 ft in

Ground Clearance

1.4 ft in

Wheelbase

11 ft in

Hinge Pin - Max Height

13.6 ft in

Reach at Max Lift and Dump

3.7 ft in
