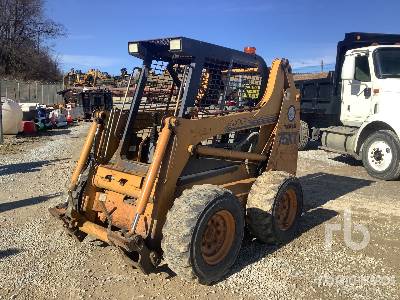

Case 75XT Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Units

Dimensions

Dimensions

A

Length with Bucket

10.96ft in

B

Width Over Tires

6.01ft in

C

Height to Top of Cab

6.67ft in

D

Wheelbase

3.75ft in

E

Ground Clearance

8.9in

F

Length w/o Bucket

8.6ft in

G

Clearance at Max Lift and Dump

7.55ft in

H

Reach at Max Lift and Dump

29.93in


Specifications

Engine

Number of Cylinders

4

Engine Make

2239

Engine Model

4-390

Gross Power

75hp

Net Power

69hp

Power Measured @

2200rpm

Displacement

239cu in

Aspiration

Natural

Operational

Operational Weight

6700lb

Fuel Capacity

17.3gal

Cooling System Fluid Capacity

4.3gal

Engine Oil Fluid Capacity

2.8gal

Hydraulic System Fluid Capacity

16.6gal

Chain Box Fluid Capacity - each side

1.3gal

Max Speed

7.2mph

Tire Size

12.00x16.5

Operating Voltage

12V

Alternator Supplied Amperage

65amps

Loader

Breakout Force

5173

Operating Load Rating

2200lb

Tipping Angle

4400degrees

Bucket Capacity

0.7yd3

Hydraulic

Pump Type

gear pump

Pump Flow Capacity

21gal/min

Relief Valve Pressure

3000psi

Dimensions

Length with Bucket

11ft in

Length w/o Bucket

8.6ft in

Width Over Tires

6.1ft in

Height to Top of Cab

6.7ft in

Clearance at Max Lift and Dump

7.6ft in

Wheelbase

3.8ft in

Ground Clearance

8.9in

Reach at Max Lift and Dump

30in

Turning Radius from Center - machine rear

61.1in

Turning Radius from Center - inc bucket

78.8in
