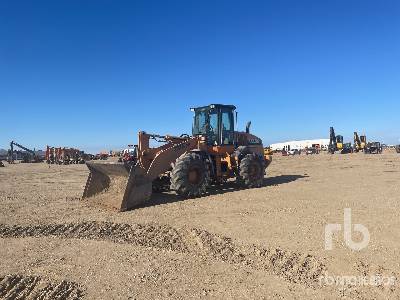

Case 721E Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

9.48ft in

Dimensions

A

Length with Bucket on Ground

25.29ft in

B

Width Over Tires

8.4ft in

C

Height to Top of Cab

11.17ft in

D

Wheelbase

10.67ft in

E

Ground Clearance

1.2ft in

F

Hinge Pin - Max Height

13.05ft in

H

Reach at Max Lift and Dump

3.85ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2239

Engine Model

Family IV 667TA/EED, Tier III Certified

Net Power

172hp

Gross Power

182hp

Power Measured @

1800rpm

Displacement

411cu in

Torque Measured @

1300rpm

Max Torque

596

Torque Rise

31.4%

Aspiration

Turbocharged with Aftercooler

Operational

Operating Weight

30644lb

Fuel Capacity

65gal

Hydraulic System Fluid Capacity

51gal

Engine Oil Fluid Capacity

3.8gal

Cooling System Fluid Capacity

9.8gal

Transmission Fluid Capacity

6.8gal

Front Axle/Diff Fluid Capacity

8gal

Rear Axle/Diff Fluid Capacity

7.3gal

Static Tipping Weight

27616lb

Turning Radius

18.9ft in

Operating Voltage

24V

Alternator Supplied Amperage

65amps

Rear Axle Oscillation

24degrees

Tire Size

20.5 R25

Transmission

Transmission Type

4F/3R Proportional w/Electronic Control Module torque sensing autoshift/manual shift and modulation

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

23.6mph

Max Speed - Reverse

16mph

Hydraulic System

Pump Type

closed centered pressure/flow compensated

Relief Valve Setting

3600

Pump Flow Capacity

31.6gal/min

Raise Time

5.6sec

Dump Time

1.8sec

Lower Time

3.3sec

Bucket

Breakout Force

29805lb

Dump Clearance at Max Raise

9.5ft in

Bucket Width

8.9ft in

Bucket Capacity - heaped

3.5yd3

Bucket Capacity - struck

3yd3

Dimensions

Length with Bucket on Ground

25.3ft in

Width Over Tires

8.4ft in

Height to Top of Cab

11.2ft in

Ground Clearance

1.2ft in

Wheelbase

10.7ft in

Hinge Pin - Max Height

13.1ft in

Reach at Max Lift and Dump

3.9ft in

`
