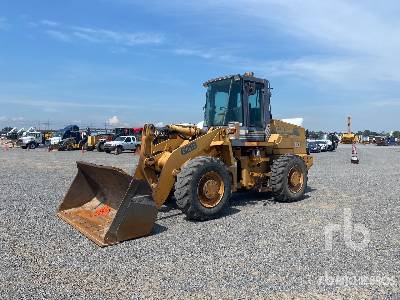

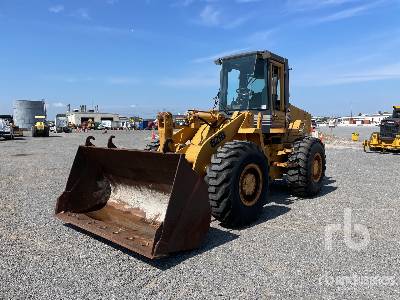

Case 621B Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Dimensions

A

Length with Bucket on Ground

22.41ft in

B

Width Over Tires

7.91ft in

C

Height to Top of Cab

10.67ft in

D

Wheelbase

9.52ft in

E

Ground Clearance

1.38ft in


Specifications

Engine

Number of Cylinders

6

Max torque ISO TR14396

404.1lb ft

Engine Model

6T-590

Net Power

116hp

Gross Power

128hp

Power Measured @

2200rpm

Displacement

359cu in

Torque Measured @

1400rpm

Aspiration

Turbocharged

Bore

4.1in

Stroke

4.8in

Operational

Operating Weight

27249.2lb

Fuel Capacity

51gal

Hydraulic System Fluid Capacity

40.5gal

Engine Oil Fluid Capacity

4gal

Transmission Fluid Capacity

5.1gal

Front Axle/Diff Fluid Capacity

2.6gal

Rear Axle/Diff Fluid Capacity

2.6gal

Operating Voltage

24V

Alternator Supplied Amperage

65amps

Tire Size

20.5 R25

Transmission

Transmission Type

Mechanical

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

18.8mph

Max Speed - Reverse

13.7mph

Hydraulic System

Raise Time

5.7sec

Dump Time

1.5sec

Lower Time

4.4sec

Bucket

Breakout Force

23649.9lb

Bucket Width

8.3ft in

Bucket Capacity - heaped

2.3yd3

Bucket Capacity - struck

1.9yd3

Dimensions

Length with Bucket on Ground

22.5ft in

Width Over Tires

8ft in

Height to Top of Cab

10.7ft in

Ground Clearance

1.4ft in

Wheelbase

9.6ft in
