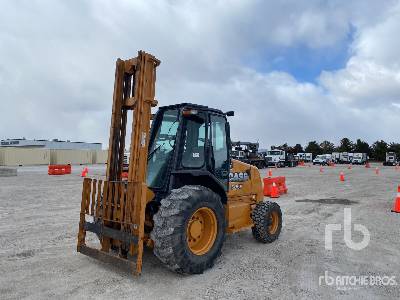

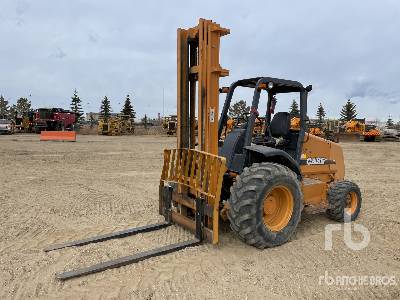

Case 588H Forklift

Forklift
Forklift
Forklift
Forklift
Forklift
Forklift
MODEL.UNITS

Dimensions

Dimensions

B

Overall Width

7.34ft in

C

Overall Height - Mast Lowered

10.5ft in

D

Wheelbase

6.99ft in

E

Ground Clearance

10.24in

G

Max Fork Height

15ft in

Overall Length

17.11ft in

Turning Radius

11.8ft in

Overall Height, Rops Cab

104.14in

Mast

H

Mast Tip Forward

45degrees

I

Mast Tip Rear

15degrees

Lift Height- Largest Mast

264.18in

Load Capacity

7998.38lb

Lift Height-Smallest Mast

179.93in

Load Center

24.02in


Specifications

Engine

Fuel

Diesel

Emission Tier Level

Tier 4

Fuel Injection

Direct high pressure common rail

Engine Speed - Rated Speed, Full Load

2200rpm

Horsepower - Gross

74hp

Horsepower -Net

68hp

Number Of Cylinders

4

Engine Model

FPT F5HFL463D

Engine Type

Diesel, 4-stroke, turbocharged

Power

74hp

Net Power

68hp

Torque

233.1lb ft

Net Torque

219.8lb ft

Power Measured @

2200rpm

Displacement

207480.8cu in

Engine Peak Torque

233.1lb ft

Torque Measured @

1400rpm

Bore

3.9in

Stroke

4.4in

Alternator

120amps

Drive Train

Transmission / Type

Power Shuttle

Travel Speeds - 1st

24mph

Capacities

Front Axle

830cu in

Engine Oil W/ Filter Change

1.5gal

Fuel Tank - Diesel

31.5gal

Cooling System

4.6gal

Operational

Operating Weight

15507.4lb

Front Tire Size

19.5 L x 24

Rear Tire Size

12 L x 16.5

Hydraulic System

Pump Type

Gear pump

Pump Flow Capacity

24gal/min

Pump Flow

24.1gal/min
