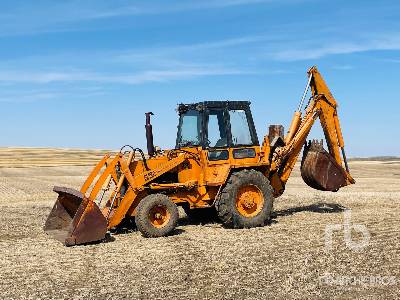

Case 480E Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
8.4ft in
K
Reach From Swivel - Std
15.72ft in
L
Dig Depth - Std
12.01ft in
Reach From Swivel - Ext
18.67ft in
Load Height - Ext
8.7ft in
Bucket Dig Force - Std
8115.22lb
Dig Depth - Ext
15.13ft in
Bucket Dig Force - Ext
8273.95lb
Dimensions
A
Transport Length
21.4ft in
B
Transport Width
7.22ft in
D
Wheelbase
6.67ft in
E
Ground Clearance
1.05ft in
Front Wheel Tread Width
66.93in
Height To Top Of Suspended Cab
8.37ft in
Rear Tread Range
65.75in
Loader
G
Clearance At Max Dump Height
8.54ft in
H
Reach At Max Dump Height
2.24ft in
Lift Capacity At Full Height
3168.05lb
Bucket Breakout Force
6340lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
J.I. Case
Engine Model
4-390
Gross Power
69hp
Net Power
63hp
Power Measured @
2200rpm
Torque Measured @
1200rpm
Net Max Torque
186lb ft
Displacement
238cu in
Bore
4.1in
Stroke
4.8in
Operational
Max Weight
10904.1lb
Tire Size Front - 2wd / 4wd
7.50x16
Rear Tires Size 2wd/4wd
14.9x24
Operating Voltage
12V
Alternator Supplied Amperage
65amps
Transmission
Transmission Type
Power shuttle
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
20.9mph
Max Speed Reverse
18.3mph
Hydraulic
Pump Type
Open center
Pump Flow Capacity
23gal/min
Relief Valve Pressure
2350psi
