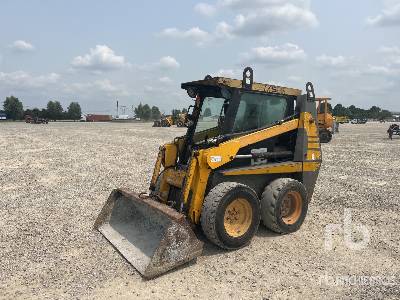

Case 1840 Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Units

Dimensions

Dimensions

A

Length with Bucket

10.44ft in

B

Width Over Tires

4.79ft in

C

Height to Top of Cab

6.44ft in

D

Wheelbase

3.09ft in

E

Ground Clearance

6.7in

F

Length w/o Bucket

8.04ft in

G

Clearance at Max Lift and Dump

6.99ft in

H

Reach at Max Lift and Dump

22.05in


Specifications

Engine

Number of Cylinders

4

Engine Make

2239

Engine Model

4-390

Gross Power

54hp

Net Power

51hp

Power Measured @

2000rpm

Displacement

239cu in

Max Torque

179lb ft

Torque Measured @

1200rpm

Operational

Operational Weight

5558lb

Fuel Capacity

19.5gal

Cooling System Fluid Capacity

4.5gal

Engine Oil Fluid Capacity

2.8gal

Hydraulic System Fluid Capacity

10.6gal

Chain Box Fluid Capacity - each side

1.3gal

Operating Speed

6.3mph

Tire Size

7.00 x 15 6PR

Operating Voltage

12V

Alternator Supplied Amperage

65amps

Loader

Operating Load Rating

1400lb

Tipping Angle

2800degrees

Bucket Capacity

0.3yd3

Hydraulic

Pump Type

gear

Pump Flow Capacity

15.3gal/min

Relief Valve Pressure

2300psi

Dimensions

Length with Bucket

10.5ft in

Length w/o Bucket

8.1ft in

Width Over Tires

4.8ft in

Height to Top of Cab

6.5ft in

Clearance at Max Lift and Dump

7ft in

Wheelbase

3.1ft in

Ground Clearance

6.7in

Reach at Max Lift and Dump

22.1in

Turning Radius from Center - machine rear

59.1in

Turning Radius from Center - inc bucket

72.9in
