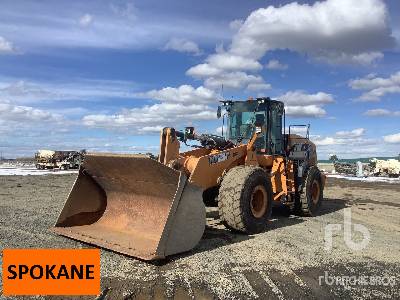

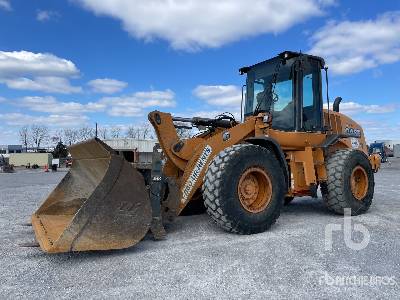

Case 1221F Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Dimensions

B

Width Over Tires

10.57ft in

C

Height to Top of Cab

12.69ft in

D

Wheelbase

12.14ft in

E

Ground Clearance

1.63ft in

F

Hinge Pin - Max Height

14.97ft in

H

Reach at Max Lift and Dump

7.32ft in


Specifications

Hydraulic cycle times (unloaded)

Total cycle time

11.6sec

Engine

Number of Cylinders

6

Rated engine speed

2100rpm

Engine Model

Cummins QSX11.9

Net Power

351hp

Gross Power

355hp

Max Torque

1250.2lb ft

Battery

12-volt

Displacement

726.2cu in

Torque Rise

40%

Emissions

Interim Tier 4

Alternator

80amps

Operational

Operating Weight

66425.3lb

Fuel Capacity

113.6gal

Cooling System Fluid Capacity

17.7gal

Transmission Fluid Capacity

11.4gal

Front Axle/Diff Fluid Capacity

15.4gal

Rear Axle/Diff Fluid Capacity

15.4gal

Operating Voltage

24V

Rear Axle Oscillation

26degrees

Performance

Tipping Load

45723.9lb

Transmission

Differential lock

F: LSD / R: LSD

Transmission Type

Powershift

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

22.4mph

Hydraulic System

Steering pump type

Articulation

Maximum system pressure

3983psi

Pump Type

Axial Piston Pump

Pump Flow Capacity

111gal/min

Bucket

Breakout Force

55730.2lb

Bucket Capacity - heaped

6.9yd3

Brakes

Service brake

Wet Multi Disc

Dimensions

Overall length (L/bucket)

31.6ft in

Dump reach @ full height, 45° dump: Bucket

5.3ft in

Dump height - fully raised, 45° dump

123.9in

Width Over Tires

10.6ft in

Height to Top of Cab

12.7ft in

Ground Clearance

1.7ft in

Wheelbase

12.2ft in

Turning Radius Outside Tires

24.9ft in

Hinge Pin - Max Height

15ft in

Reach at Max Lift and Dump

7.4ft in
