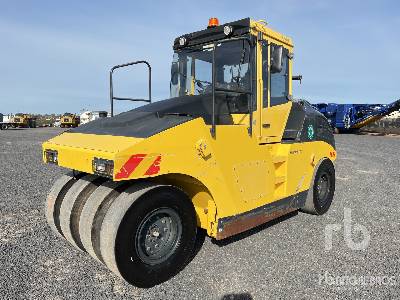

Bomag BW24RH Pneumatic Roller

Bomag BW24RH Pneumatic Roller Specs front
Bomag BW24RH Pneumatic Roller Specs front
Bomag BW24RH Pneumatic Roller Specs side
Bomag BW24RH Pneumatic Roller Specs side
Bomag BW24RH Pneumatic Roller Specs back
Bomag BW24RH Pneumatic Roller Specs back
Units

Dimensions

Dimensions

A

Overall Length

16.36 in

B

Overall Width

6.95 ft in

C

Height to Top of ROPS

10.14 ft in

D

Wheelbase

12.14 ft in

E

Ground Clearance

11.8 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2349

Engine Model

TCD 2012 L04

Gross Power

99 hp

Power Measured @

2300 rpm

Aspiration

turbocharged

Operational

Fuel Capacity

66.1 gal

Water Spray Tank Fluid Capacity

105.7 gal

Max Speed

12.5 mph

Operating Voltage

12 V

Weights

Operating Weight - standard

19070 lb

Operating Weight - max ballast

52911 lb

Average Weight per Wheel - Max Ballast

6614 lb

Tires

Number of Tires - Front

4

Number of Tires - Rear

4

Standard Tire Size

11.00-20 18PR

Oscillation Angle

4 degrees

Wheel Track/Tire Overlap

1.7 in

Dimensions

Overall Length

16.4 in

Overall Width

7 ft in

Height to Top of ROPS

10.2 ft in

Wheelbase

12.2 ft in

Ground Clearance

11.8 ft in
