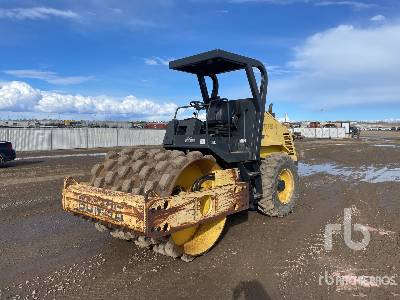

Bomag BW124 PDH-40 Vibratory Compactor
Units
Dimensions
Dimensions
A
Overall Length W/O Blade
11ft in
B
Width Over Tires
4.3ft in
C
Height To Top Of Cab
8.11ft in
D
Wheelbase
5.93in
E
Ground Clearance
12.6in
Overall Length W/ Blade
12.8ft in
Drum
F
Drum Diameter
35in
Centrifugal Force - High
18546.74lb
Nominal Amplitude - High
0.07in
Pad Height
2.17in
Number Of Pads
70
Vibration Frequency 1
41Hz
Drum Width
47.25in
Pad Surface Area
12.6in2
Specifications
Engine
Number Of Cylinders
3
Engine Make
2349
Engine Model
D2011 L03i
Gross Power
44hp
Power Measured @
2500rpm
Operational
Operating Weight
7120lb
Fuel Capacity
15.9gal
Max Speed
5.6mph
Tires
9.5-24/6PR/R-1
Operating Voltage
12V
Blade
Blade Width
5ft in
