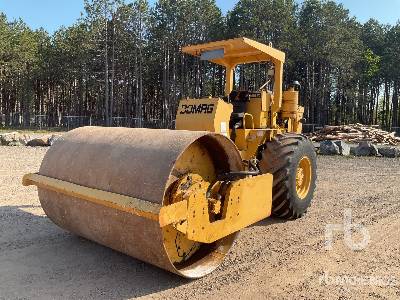

Bomag BW 177 PDH-50 Vibratory Smooth Drum Roller
Units
Dimensions
Dimensions
A
Overall Length
193.4in
B
Overall Width
5.54ft in
C
Height To Top Of Cab
9.39ft in
D
Wheelbase
98.4in
E
Ground Clearance
14.7in
Operating Width
5.96ft in
Specifications
Steering System
Oscillating Angle
12degrees
System
Oscillatory Articulation
Steering Method
Hydrostatic
Steering Angle
35degrees
Engine
Fuel
Diesel
Number Of Cylinders
4
Cooling Method
Water
Engine Make
Cummins
Engine Model
B3.3T
Gross Power
74hp
Power Measured @
2600rpm
Aspiration
Tier 4i
Operational
Operating Weight
16115lb
Fuel Capacity
39.5gal
Max Speed
8mph
Tires *If Applicable
14.9-24/6PR
Operating Voltage
12V
Drum
Drum Width
66.4in
Drum Diameter
48.3in
Number Of Pads
104
Static Linear Load
136.1lb/in
Pad Height
3.1in
Vibration Frequency 1
30Hz
Pad Surface Area
15.3in2
Nominal Amplitude - High
0.1in
Vibration Frequency 2
40Hz
Centrifugal Force - High
27000lb
Weights
Loaded Weight
9545lb
Brakes
Parking Brake
SAHR
Service Brake
Hydrostatic
