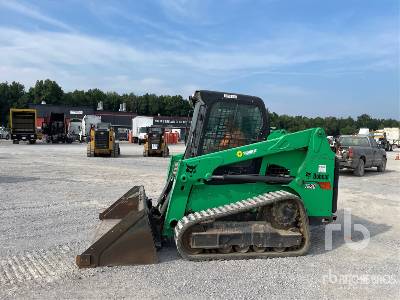

Bobcat T630 Multi Terrain Loader
Units
Dimensions
Dimensions
B
Width Over Tracks
6.08ft in
C
Height To Top Of Cab
6.78ft in
H
Reach At Max Lift And Dump
2.01ft in
Overall Width
6.08ft in
Overall Height
6.78ft in
Length With Bucket
11.4ft in
Length With Out Bucket
9.04ft in
Turning Radius From Center - Machine Rear
88.1in
Undercarriage
D
Length Of Track On Ground
58.5ft in
Width Of Track
12.6in
Ground Pressure
5.3psi
Specifications
Engine
Fuel
Diesel
Emission Tier Level
Tier 4
Horsepower - Gross
74hp
Gross Power
74.3hp
Aspiration
Turbocharged
Operational
Operating Weight
8555lb
Cooling System Fluid Capacity
3gal
Fuel Capacity
27.3gal
Max Speed - Low Range
6.6mph
Travel Speed
6.2mph
Loader
Operating Load
2100lb
Tipping Angle
6000degrees
Hydraulic
Pump Flow
23gal/min
Relief Valve Pressure
3500psi
