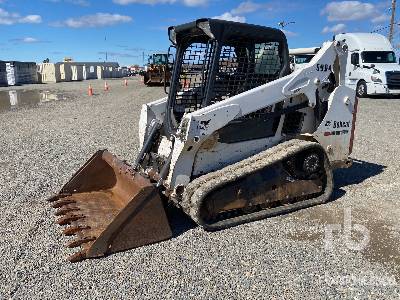

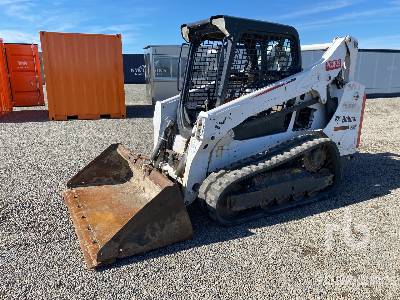

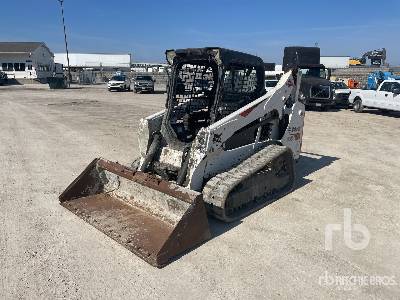

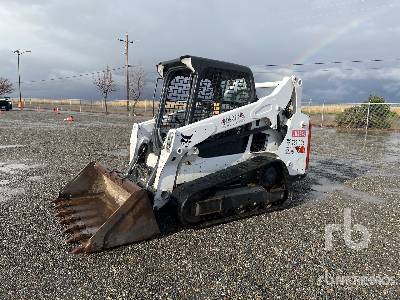

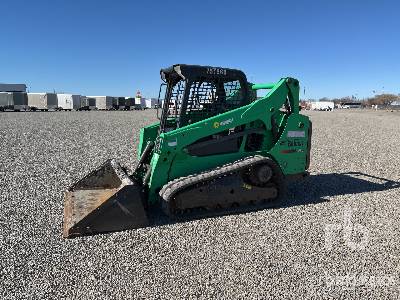

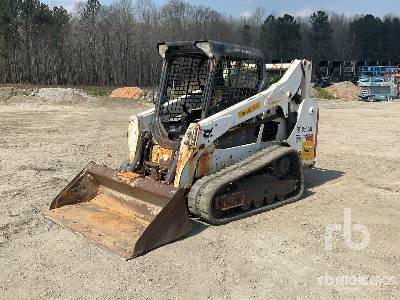

Bobcat T590 Multi Terrain Loader

Bobcat T590 Multi Terrain Loader Specs front
Bobcat T590 Multi Terrain Loader Specs front
Bobcat T590 Multi Terrain Loader Specs back
Bobcat T590 Multi Terrain Loader Specs back
Bobcat T590 Multi Terrain Loader Specs extended
Bobcat T590 Multi Terrain Loader Specs extended
Units

Dimensions

Dimensions

C

Height to Top of Cab

6.49 ft in

H

Reach at Max Lift and Dump

1.61 ft in

Undercarriage

D

Length of Track on Ground

4.51 ft in


Specifications

Engine

Fuel

Diesel

Emission Tier Level

Tier 4

Horsepower - Gross

66 hp

Number of Cylinders

4

Engine Make

2334

Engine Model

V2607-DI-TE3B Interim Tier 4

Gross Power

61 hp

Power Measured @

2700 rpm

Peak Torque

155.6 lb ft

Torque Measured @

1425 rpm

Displacement

158.7 cu in

Bore

3.5 in

Stroke

4.4 in

Operational

Operating Weight

7822 lb

Fuel Capacity

36.5 gal

Cooling System Fluid Capacity

3 gal

Engine Oil Capacity

2.6 gal

Loader

Breakout Force

4753 lb

Operating Load

2100 lb

Tipping Angle

6000 degrees

Undercarriage

Ground Pressure

5.1 psi

Length of Track on Ground

4.6 ft in

Width of Track

12.6 in

Hydraulic

Pump Type

Engine driven, gear type

Pump Flow

17.1 gal/min

Relief Valve Pressure

3500 psi

Dimensions

Overall width

5.6 ft in

Overall height

6.5 ft in

Overall length

11.1 ft in

Length with Bucket

11.1 ft in

Length with out Bucket

8.8 ft in

Height to Top of Cab

6.5 ft in

Reach at Max Lift and Dump

1.7 ft in

Turning Radius from Center - machine rear

6.7 in
