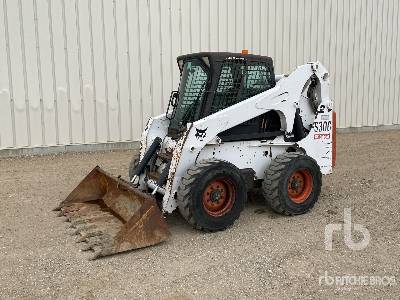

Bobcat S300 Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Units

Dimensions

Dimensions

A

Length with Bucket

11.91ft in

B

Width Over Tires

6.01ft in

C

Height to Top of Cab

6.75ft in

D

Wheelbase

4.03ft in

F

Length w/o Bucket

9.55ft in

G

Clearance at Max Lift and Dump

8.29ft in

H

Reach at Max Lift and Dump

34in


Specifications

Engine

Number of Cylinders

4

Engine Make

2334

Engine Model

V3300-DI-T

Gross Power

81hp

Power Measured @

2400rpm

Displacement

201.4cu in

Operational

Operational Weight

8448lb

Fuel Capacity

23gal

Operating Speed

6.9mph

Max Speed

12mph

Loader

Operating Load Rating

3000lb

Tipping Angle

6111degrees

Bucket Capacity

0.6yd3

Hydraulic

Pump Flow Capacity

20.7gal/min

Relief Valve Pressure

3300psi

Dimensions

Length with Bucket

12ft in

Length w/o Bucket

9.6ft in

Width Over Tires

6.1ft in

Height to Top of Cab

6.8ft in

Clearance at Max Lift and Dump

8.3ft in

Wheelbase

4.1ft in

Reach at Max Lift and Dump

34in

Turning Radius from Center - machine rear

84.2in


Compare similar models

Manufacturer / Model

Operational Weight

Operating Load Rating

Operational Weight

8430 lb

Operating Load Rating

3000 lb

Operational Weight

8300 lb

Operating Load Rating

3000 lb

Operational Weight

8673 lb

Operating Load Rating

3000 lb
`
