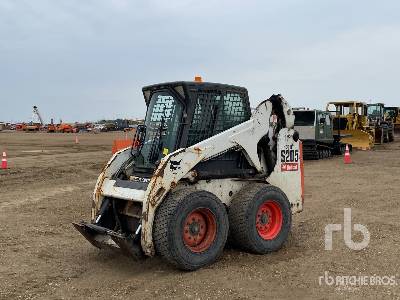

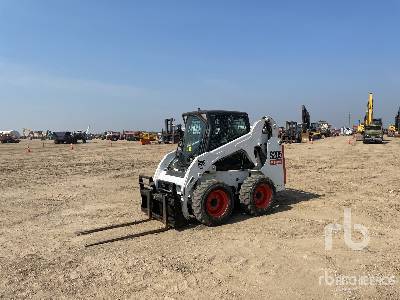

Bobcat S205 Skid Steer Loader

Bobcat S205 Skid Steer Loader Specs front
Bobcat S205 Skid Steer Loader Specs front
Bobcat S205 Skid Steer Loader Specs side
Bobcat S205 Skid Steer Loader Specs side
Bobcat S205 Skid Steer Loader Specs back
Bobcat S205 Skid Steer Loader Specs back
Units

Dimensions

Dimensions

A

Length with Bucket

10.86 ft in

B

Width Over Tires

5.5 ft in

C

Height to Top of Cab

6.36 ft in

D

Wheelbase

3.38 ft in

E

Ground Clearance

7.49 in

F

Length w/o Bucket

8.5 ft in

G

Clearance at Max Lift and Dump

7.58 ft in

H

Reach at Max Lift and Dump

29.6 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2334

Engine Model

V2403-M-DI-T

Gross Power

61 hp

Power Measured @

2700 rpm

Displacement

146.5 cu in

Operational

Operational Weight

6655 lb

Fuel Capacity

24.1 gal

Operating Speed

7 mph

Max Speed

10.7 mph

Loader

Operating Load Rating

2050 lb

Tipping Angle

4100 degrees

Bucket Capacity

0.6 yd3

Hydraulic

Pump Flow Capacity

16.3 gal/min

Dimensions

Length with Bucket

10.9 ft in

Length w/o Bucket

8.5 ft in

Width Over Tires

5.5 ft in

Height to Top of Cab

6.4 ft in

Clearance at Max Lift and Dump

7.6 ft in

Wheelbase

3.4 ft in

Ground Clearance

7.5 in

Reach at Max Lift and Dump

29.6 in

Turning Radius from Center - inc bucket

78.8 in


Compare similar models

Manufacturer / Model

Operational Weight

Operating Load Rating

Operational Weight

6594.1 lb

Operating Load Rating

2100 lb

Operational Weight

6791 lb

Operating Load Rating

2061 lb

Operational Weight

6799.1 lb

Operating Load Rating

1999.6 lb
