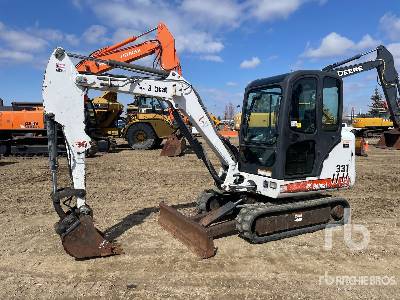

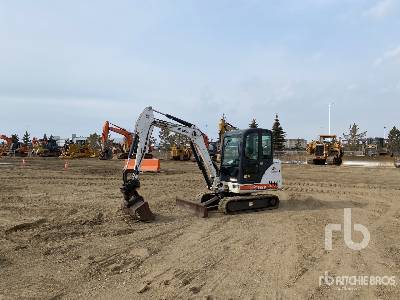

Bobcat 331 Mini Excavator

Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

16.02ft in

C

Shipping Height of Unit

7.74ft in

I

Max Cutting Height

14.9ft in

J

Max Loading Height

10.14ft in

K

Max Reach Along Ground

191.9ft in

L

Max Vertical Wall Digging Depth

7.23ft in

M

Max Digging Depth

122.1ft in

Dimensions

B

Width to Outside of Tracks

5.05ft in

D

Length of Track on Ground

5.13ft in

G

Height to Top of Cab

7.73ft in

H

Tail Swing Radius

4.56ft in

Undercarriage

F

Track Gauge

4.01ft in

N

Shoe Size

12.6in


Specifications

Engine

Engine Make

2334

Engine Model

V-2203-M-DI-E2B

Gross Power

40hp

Power Measured @

2400rpm

Displacement

134.3cu in

Operational

Operating Weight

7185lb

Fuel Capacity

15.3gal

Hydraulic Pump Flow Capacity

24.1gal/min

Swing Mechanism

Swing Speed

9.2rpm

Undercarriage

Shoe Size

12.6in

Ground Pressure

4.3psi

Max Travel Speed

3.2mph

Track Gauge

4.1ft in

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Stick 1200mm

Shipping Height of Unit

7.8ft in

Shipping Length of Unit

16.1ft in

Max Digging Depth

122.1ft in

Max Reach Along Ground

191.9ft in

Max Cutting Height

14.9ft in

Max Loading Height

10.2ft in

Max Vertical Wall Digging Depth

7.3ft in

Dimensions

Width to Outside of Tracks

5.1ft in

Height to Top of Cab

7.8ft in

Removal Counterweight Clearance

1.7ft in

Tail Swing Radius

4.6ft in

Length of Track on Ground

5.2ft in
