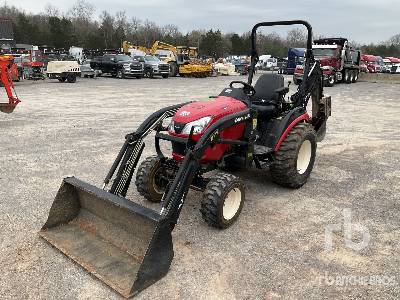

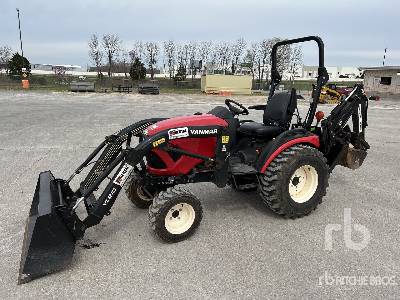

Yanmar YT359 4WD Tractor
Units
Dimensions
Dimensions
A
Overall Length
132.09in
D
Wheelbase
77.45in
E
Ground Clearance
12.84in
Overall Height
7.98ft in
Width
5.89ft in
Specifications
Engine
Battery
880 CCA
Number Of Cylinders
4
Engine Make
Yanmar
Engine Model
4TNV98C
Gross Power
58.9hp
Cooling System
Liquid cooled
Air Cleaner
Dual Stage Cyclonic (Resin 5.5 in.)
Pto Power
48.9hp
Power Measured @
2500rpm
Displacement
202.5cu in
Bore
3.9in
Stroke
4.4in
Aspiration
Naturally aspirated
Alternator
55amps
Operational
Operating Weight
4038.9lb
Fuel Capacity
12.7gal
Cooling System Fluid Capacity
2gal
Engine Oil Capacity
2.1gal
3 Point Hitch Type
Category 1
3 Point Hitch Lift Capacity @ 24 Inches
2755.8lb
Transmission Case
7.7gal
Front Axle
2.4gal
Power Take-Off(Pto)
Pto Speed Rear
540rpm
Transmission
Rear Diff. Lock Engagement
Foot pedal
Brake Type
Mechanical wet disc
Maximum Speed Forward
18mph
Max Speed - Reverse
18mph
Hydraulic System
Implement Pump Flow
10.2gal/min
Pump Flow Capacity
5.8gal/min
