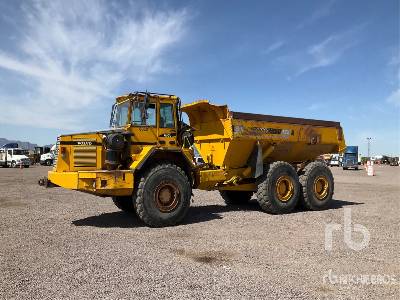

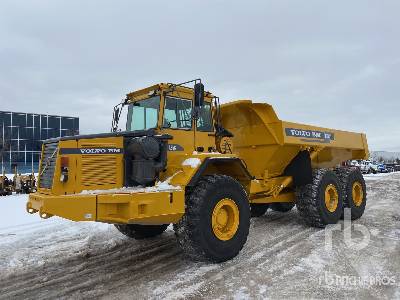

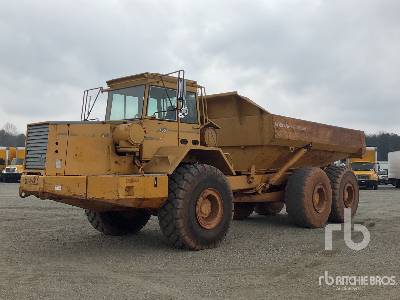

Volvo BM BM A35 Articulated Dump Truck

Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
MODEL.UNITS

Dimensions

Dimensions

A

Overall Length

35.32ft in

B

Overall Width

10.5ft in

C

Overall Height

11.39ft in

D

Wheelbase

17.69ft in

E

Ground Clearance

1.69ft in

F

Dump Height

24.59ft in

G

Dump Ground Clearance

3.37ft in

Dump

H

Dump Angle

73degrees

Lower Time

18sec

Rated Payload

70547.92lb

Capacity - Struck

18.84yd3

Raise Time

15sec

Capacity - Heaped

24.86yd3


Specifications

Engine

Number Of Cylinders

6

Engine Make

2244

Engine Model

TD 122 GA

Gross Power

326hp

Net Power

322hp

Power Measured @

2050rpm

Max Torque

958.9lb ft

Torque Measured @

1300rpm

Aspiration

turbocharged

Displacement

732.3cu in

Operational

Fuel Capacity

95.2gal

Hydraulic System Fluid Capacity

51.3gal

Cooling System Fluid Capacity

23.3gal

Engine Oil Capacity

8.7gal

Transmission Fluid Capacity

10.1gal

Operating Voltage

24V

Tire Size

26.5 R 25

Transmission

Transmission Type

Automatic planetary transmission

Number Of Forward Gears

6

Number Of Reverse Gears

2

Max Speed

33.1mph

Weights

Front Axle - Empty

28924.7lb

Rear Axle - Empty

26852.4lb

Front Axle - Loaded

35847.2%

Rear Axle - Loaded

90477.8lb

Total Empty

55777lb

Total Loaded

126324.9lb
