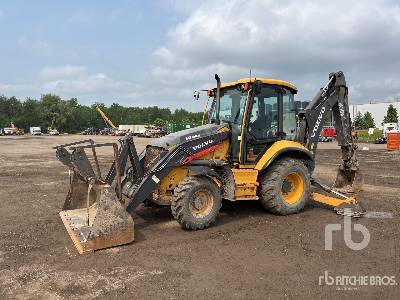

Volvo BL70 Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

12.52 ft in

K

Reach From Swivel - Std

19.07 ft in

L

Dig Depth - Std

14.42 ft in

M

Reach at Load Height - Std

9.25 ft in

Dimensions

A

Transport Length

24.08 ft in

B

Transport Width

7.75 ft in

C

Transport Height

12.08 ft in

D

Wheelbase

7.17 ft in

E

Ground Clearance

1.04 ft in

Loader

G

Clearance at Max Dump Height

8.75 ft in

H

Reach at Max Dump Height

2.75 ft in

I

Dig Depth

8.4 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2244

Engine Model

D4D

Net Power

90 hp

Power Measured @

2200 rpm

Torque Measured @

1500 rpm

Net Torque Rise

28 %

Net Max Torque

287 lb ft

Aspiration

Turbocharged

Displacement

244 cu in

Operational

Operating Weight 4wd

18973 lb

Fuel Capacity

31.7 gal

Hydraulic System Fluid Capacity

35.7 gal

Oil System Fluid Capacity

3.7 gal

Cooling System Fluid Capacity

5 gal

Front Axle Fluid Capacity

1.7 gal

Rear Axle Fluid Capacity

3.7 gal

Turning Radius

16.5 ft in

Tire Size Front - 2wd / 4wd

12.5/80-18

Rear Tires Size 2wd/4wd

19.5Lx24

Operating Voltage

12 V

Alternator Supplied Amperage

95 amps

Transmission

Transmission Type

powershuttle with full synchronized gear

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

22.7 mph

Max Speed Reverse

22.7 mph

Backhoe

Dig Depth - Std

14.5 ft in

Dig Depth - Ext

18 ft in

Reach From Swivel - Std

19.1 ft in

Reach From Swivel - Ext

22.3 ft in

Load at Max Lift - Std

6953 lb

Load Height - Std

12.6 ft in

Load Height - Ext

14.6 ft in

Reach at Load Height - Std

9.3 ft in

Reach at Load Height - Ext

12.1 ft in

Loader

Bucket Capacity

1.3 yd3

Bucket Width

92.6 in

Bucket Breakout Force

12445 lb

Lift Capacity at Full Height

6953 lb

Clearance at Max Dump Height

8.8 ft in

Reach at Max Dump Height

2.8 ft in

Dig Depth

8.4 in

Hydraulic

Pump Type

Axial-piston pump

Pump Flow Capacity

42 gal/min

Relief Valve Pressure

3625 psi

Dimensions

Transport Length

24.1 ft in

Transport Width

7.8 ft in

Transport Height

12.1 ft in

Height to Top of Suspended Cab

9.5 ft in

Wheelbase

7.2 ft in

Ground Clearance

1.1 ft in
