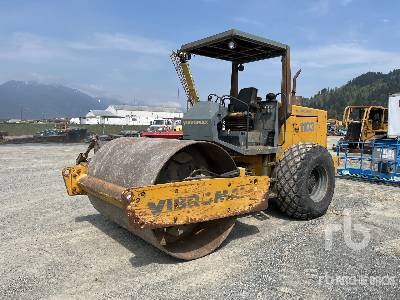

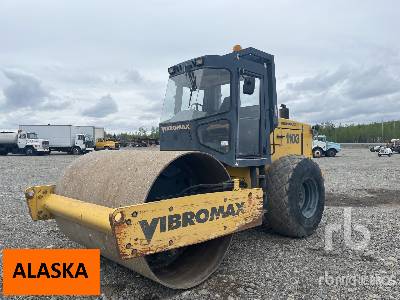

Vibromax VM66PD Vibratory Compactor
Units
Dimensions
Dimensions
A
Overall Length W/O Blade
16.04ft in
C
Height To Top Of Cab
9.34ft in
D
Wheelbase
8.25in
E
Ground Clearance
15.32in
Drum
F
Drum Diameter
44.89in
Vibration Frequency 1
29Hz
Vibratory Frequency 2
36Hz
Number Of Pads
100
Drum Width
68.9in
Nominal Amplitude - High
0.08in
Centrifugal Force - High
35070.2lb
Pad Height
3.15in
Specifications
Engine
Engine Make
2347
Engine Model
B 3.3
Gross Power
80.5hp
Displacement
199cu in
Aspiration
turbocharged
Operational
Operating Weight
16755.2lb
Fuel Capacity
60.8gal
Cooling System Fluid Capacity
3.7gal
Engine Oil Capacity
2.2gal
Hydraulic System Fluid Capacity
21.2gal
Max Speed
6.9mph
Tires
14.9-24
Operating Voltage
12V
Alternator Supplied Amperage
60amps
