Terex AC700 All Terrain Crane

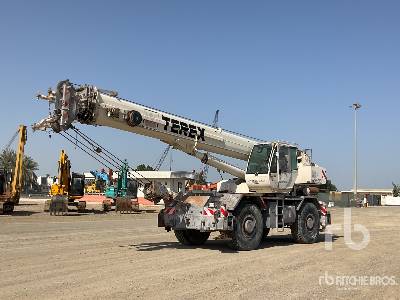

Terex AC700 All Terrain Crane Specs front

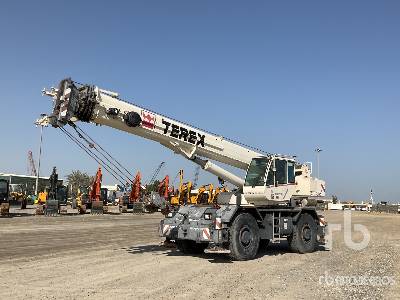

Terex AC700 All Terrain Crane Specs front

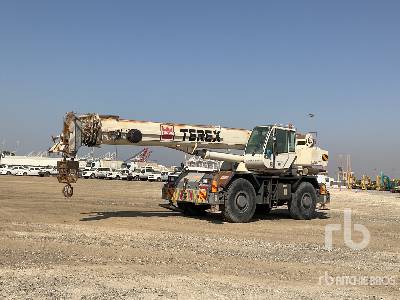

Terex AC700 All Terrain Crane Specs side

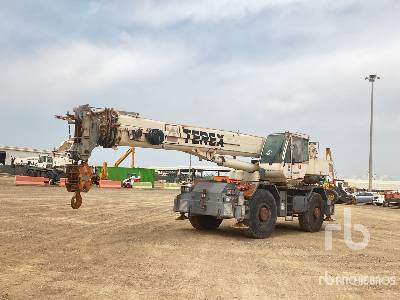

Terex AC700 All Terrain Crane Specs side

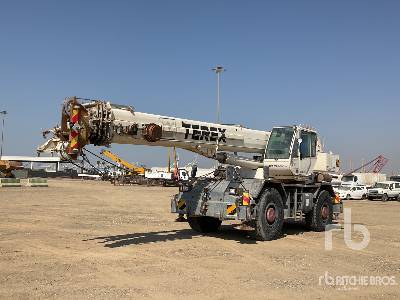

Terex AC700 All Terrain Crane Specs extend
Terex AC700 All Terrain Crane Specs extend
Units

Dimensions

Boom

I

Min Height @ Max Raise Angle

50.53 ft in

J

Max Height @ Max Raise Angle - no jib

206.7 ft in

K

Min Working Radius

9.85 ft in

L

Max Working Radius

177.17 ft in

M

Max Elevating Angle

83 degrees

Dimensions

A

Transport Length

67.77 ft in

B

Transport Width

9.85 ft in

C

Transport Height

13.13 ft in

F

Width w/ Outriggers Extended

40.56 ft in

G

Carrier Length

61.16 ft in


Specifications

UPPER STRUCTURE ENGINE

Make

Terex

Model

OM 906 LA

Gross Power

275 hp

Power Measured @

2200 rpm

Max Torque

811.4 lb ft

Torque Measured @

1600 rpm

CARRIER ENGINE

Make

Terex

Model

OM 502 LA

Gross Power

643.7 hp

Power Measured @

1800 rpm

Max Torque

2065.2 lb ft

Torque Measured @

1200 rpm

Operational

Operating Weight

238099.3 lb

Number of Axels

9

Upper Structure Fuel Capacity

79.3 gal

Carrier Fuel Capacity

171.8 gal

Operating Voltage

24 V

Tire Size

14.00R25

Transmission

Transmission Type

ZF-TC-Tronic automated

Max Speed - Forward

39.2 mph

Boom

Number of Sections

4

Min Height @ Max Raise Angle

50.6 ft in

Max Height @ Max Raise Angle - no jib

206.7 ft in

Max Elevating Angle

83 degrees

Max Lift Capacity

1543235.8 lb

Min Working Radius

9.9 ft in

Max Working Radius

177.2 ft in

Swing Speed

1 rpm

Dimensions

Transport Length

67.8 ft in

Transport Width

9.9 ft in

Transport Height

13.2 ft in

Width w/ Outriggers Extended

40.6 ft in

Carrier Length

61.2 ft in
