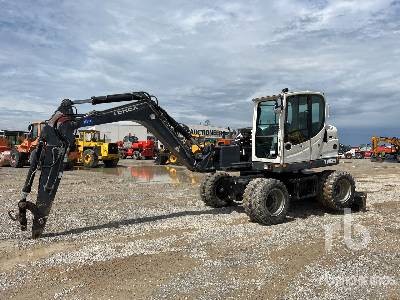

Terex 1404MK Mobile Excavator

Terex 1404MK Mobile Excavator Specs front
Terex 1404MK Mobile Excavator Specs front
Terex 1404MK Mobile Excavator Specs side
Terex 1404MK Mobile Excavator Specs side
Terex 1404MK Mobile Excavator Specs extended
Terex 1404MK Mobile Excavator Specs extended
Units

Dimensions

Boom/Stick Option (MEX) 1

I

Max Cutting Height

31.83 ft in

M

Max Digging Depth

16.74 ft in

Boom/Stick Option (MEX) 2

I

Max Cutting Height

33.14 ft in

M

Max Digging Depth

18.38 ft in

Boom/Stick Option (MEX) 3

I

Max Cutting Height

30.02 ft in

M

Max Digging Depth

16.08 ft in

Boom/Stick Option (MEX) 4

I

Max Cutting Height

31.17 ft in

M

Max Digging Depth

17.89 ft in

Dimensions

B

Overall Width

8.17 in

D

Wheelbase

8.21 ft in

E

Ground Clearance

1.15 ft in

G

Height to Top of Cab

9.83 ft in

N

Upper Structure Clearance

4.02 ft in


Specifications

Engine

Engine Make

2349

Engine Model

BF4M 2012

Gross Power

99 hp

Net Power

94 hp

Power Measured @

2100 rpm

Displacement

194.8 cu in

Aspiration

turbocharger

Operational

Fuel Capacity

50.2 gal

Engine Oil Capacity

2.7 gal

Hydraulic System Fluid Capacity

52.9 gal

Operational Voltage

24 V

Hydraulic System Relief Valve Pressure

4931.3 psi

Hydraulic Pump Type

1x axial piston pump

Hydraulic Pump Flow Capacity

58.2 gal/min

Tire Size

10.00-20

Swing Mechanism

Swing Speed

8.5 rpm

Swing Torque

27658.6 lb ft

Transmission

Max Travel Speed

12.5 mph

Buckets

Reference Bucket Capacity

0.9 yd3

Minimum Bucket Capacity

0.9 yd3

Maximum Bucket Capacity

1.5 yd3

Boom/Stick Option (MEX) 1

Boom/Stick Option (MEX) 1

hydraulically adjustable arm w/ stick 2160 mm

Max Digging Depth

16.8 ft in

Max Cutting Height

31.9 ft in

Boom/Stick Option (MEX) 2

Boom/Stick Option (MEX) 2

hydraulically adjustable arm w/ stick 2660 mm

Max Digging Depth

18.4 ft in

Max Cutting Height

33.2 ft in

Boom/Stick Option (MEX) 3

Boom/Stick Option (MEX) 3

mechanically adjustable arm w/ stick 2160 mm

Max Digging Depth

16.1 ft in

Max Cutting Height

30.1 ft in

Boom/Stick Option (MEX) 4

Boom/Stick Option (MEX) 4

mechanically adjustable arm w/ stick 2660 mm

Max Digging Depth

17.9 ft in

Max Cutting Height

31.2 ft in

Dimensions

Overall Width

8.2 in

Height to Top of Cab

9.9 ft in

Wheelbase

8.3 ft in

Ground Clearance

1.2 ft in

Upper Structure Clearance

4.1 ft in
