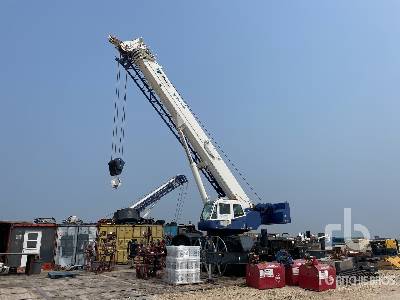

Tadano ATF50G-3 All Terrain Crane

Tadano ATF50G-3 All Terrain Crane Specs front
Tadano ATF50G-3 All Terrain Crane Specs front
Tadano ATF50G-3 All Terrain Crane Specs side
Tadano ATF50G-3 All Terrain Crane Specs side
Tadano ATF50G-3 All Terrain Crane Specs extend
Tadano ATF50G-3 All Terrain Crane Specs extend
Units

Dimensions

Boom

I

Min Height @ Max Raise Angle

42 ft in

J

Max Height @ Max Raise Angle - no jib

141.08 ft in

K

Min Working Radius

8.2 ft in

L

Max Working Radius

118.1 ft in

M

Max Elevating Angle

83 degrees

Dimensions

A

Transport Length

37.31 ft in

B

Transport Width

8.37 ft in

C

Transport Height

12.21 ft in

F

Width w/ Outriggers Extended

20.67 ft in

G

Carrier Length

30.81 ft in

H

Upper Structure Tail Swing Radius

11.32 ft in


Specifications

CARRIER ENGINE

Make

Tadano

Model

OM 926 LA

Gross Power

326 hp

Power Measured @

2200 rpm

Max Torque

958.9 lb ft

Torque Measured @

1600 rpm

Displacement

439.4 cu in

Operational

Operating Weight

79370 lb

Number of Axels

3

Carrier Fuel Capacity

92.5 gal

Operating Voltage

24 V

Alternator Supplied Amperage

100 amps

Tire Size

14.00R25

Transmission

Transmission Type

full automatic

Number of Forward Gears

12

Number of Reverse Gears

2

Max Speed - Forward

52.2 mph

Max Speed - Reverse

4.3 mph

Boom

Number of Sections

5

Min Height @ Max Raise Angle

42 ft in

Max Height @ Max Raise Angle - no jib

141.1 ft in

Max Elevating Angle

83 degrees

Max Lift Capacity

110000 lb

Min Working Radius

8.2 ft in

Max Working Radius

118.1 ft in

Swing Speed

2.2 rpm

Dimensions

Transport Length

37.4 ft in

Transport Width

8.4 ft in

Transport Height

12.3 ft in

Width w/ Outriggers Extended

20.7 ft in

Carrier Length

30.9 ft in

Upper Structure Tail Swing Radius

11.4 ft in
