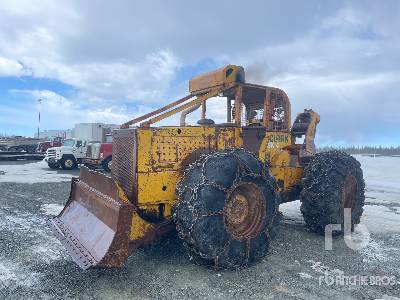

Ranger G67G Skidder

Ranger G67G Skidder Specs front
Ranger G67G Skidder Specs front
Ranger G67G Skidder Specs back
Ranger G67G Skidder Specs back
Ranger G67G Skidder Specs extended
Ranger G67G Skidder Specs extended
Units

Dimensions

Dimensions

B

Overall Width

10.8 ft in

C

Height to Top of Cab

9.85 ft in

D

Wheelbase

11.5 ft in

E

Ground Clearance

1.82 ft in

F

Max Height of Boom

10.5 ft in

F

Max Height of Boom

11.34 ft in

H

Reach of Grapple at Ground Level

7.66 ft in

I

Tong Opening at Tips

8.34 ft in

I

Tong Opening at Tips

8.75 in


Specifications

Engine

Number of Cylinders

6

Engine Make

2347

Engine Model

6BTA5.9

Gross Power

177 hp

Net Power

167 hp

Power Measured @

2500 rpm

Peak Torque

447 lb ft

Displacement

359 cu in

Operational

Operating Weight

30900 lb

Fuel Capacity

67 gal

Cooling System Fluid Capacity

10 gal

Engine Oil Capacity

3.6 gal

Hydraulic System Fluid Capacity

40 gal

Operational Voltage

12 V

Alternator Supplied Amperage

130 amps

Tire Size

30.5X32

Transmission

Transmission Type

Clark R28320

Number of Forward Gears

3

Max Speed - Forward

17.1 mph

Hydraulic

Pump Type

gear type

Pump Flow

39.9 gal/min

Relief Valve Pressure

2750 psi

Dimensions

Overall Width

10.8 ft in

Blade Width

7.1 ft in

Height to Top of Cab

9.9 ft in

Max Blade Height

23.6 in

Wheelbase

11.5 ft in

Ground Clearance

1.9 ft in

Reach of Grapple at Ground Level

7.7 ft in

Max Height of Boom

10.5 ft in

Tong Opening at Tips

8.4 ft in

Grapple Capacity - tongs tip to tip

9 ft2

Reach of Grapple at Ground Level

7.7 ft in

Max Height of Boom

11.4 ft in

Tong Opening at Tips

8.8 in

Grapple Capacity - tongs tip to tip

11.1 ft2

Cable Width

0.6 in

Drum Capacity at Cable Width

315 ft in

Max Line Pull - bare drum

33635 lb

Max Line Speed

292 ft/min
