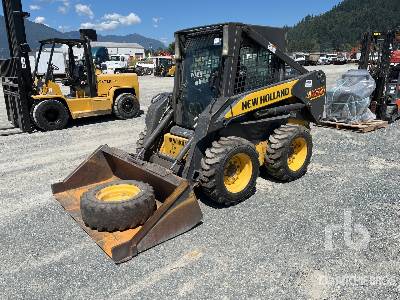

New Holland L160 Skid Steer Loader

New Holland L160 Skid Steer Loader Specs front
New Holland L160 Skid Steer Loader Specs front
New Holland L160 Skid Steer Loader Specs side
New Holland L160 Skid Steer Loader Specs side
New Holland L160 Skid Steer Loader Specs back
New Holland L160 Skid Steer Loader Specs back
Units

Dimensions

Dimensions

A

Length with Bucket

10.44 ft in

B

Width Over Tires

5.48 ft in

C

Height to Top of Cab

6.24 ft in

D

Wheelbase

3.55 ft in

E

Ground Clearance

7.49 in

G

Clearance at Max Lift and Dump

11.68 ft in

H

Reach at Max Lift and Dump

29.14 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2249

Engine Model

N844

Gross Power

45.6 hp

Net Power

44.3 hp

Power Measured @

2900 rpm

Displacement

119.4 cu in

Operational

Operational Weight

5533.7 lb

Fuel Capacity

14.4 gal

Cooling System Fluid Capacity

2.7 gal

Engine Oil Fluid Capacity

1.8 gal

Hydraulic System Fluid Capacity

8.7 gal

Chain Box Fluid Capacity - each side

3.3 gal

Max Speed

7.4 mph

Tire Size

10.00 x 16.5

Operating Voltage

12 V

Alternator Supplied Amperage

40 amps

Loader

Breakout Force

3712

Operating Load Rating

1600 lb

Tipping Angle

3200 degrees

Bucket Capacity

0.5 yd3

Hydraulic

Pump Type

Gear type

Pump Flow Capacity

15.1 gal/min

Relief Valve Pressure

2500 psi

Dimensions

Length with Bucket

10.5 ft in

Width Over Tires

5.5 ft in

Height to Top of Cab

6.3 ft in

Clearance at Max Lift and Dump

11.7 ft in

Wheelbase

3.6 ft in

Ground Clearance

7.5 in

Reach at Max Lift and Dump

29.2 in

Turning Radius from Center - inc bucket

67 in
