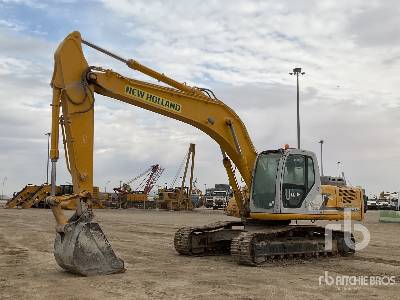

New Holland E305LC Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

34.36ft in

C

Shipping Height of Unit

11.46ft in

I

Max Cutting Height

31.98ft in

J

Max Loading Height

22.9ft in

K

Max Reach Along Ground

31.59ft in

L

Max Vertical Wall Digging Depth

19.8ft in

M

Max Digging Depth

20.52ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

34.03ft in

C

Shipping Height of Unit

11.19ft in

I

Max Cutting Height

32.62ft in

J

Max Loading Height

23.39ft in

K

Max Reach Along Ground

32.56ft in

L

Max Vertical Wall Digging Depth

20.86ft in

M

Max Digging Depth

21.51ft in

Boom/Stick Option (HEX) 3

A

Shipping Length of Unit

33.7ft in

C

Shipping Height of Unit

10.41ft in

I

Max Cutting Height

33.57ft in

J

Max Loading Height

24.29ft in

K

Max Reach Along Ground

34.67ft in

L

Max Vertical Wall Digging Depth

23.26ft in

M

Max Digging Depth

23.8ft in

Boom/Stick Option (HEX) 4

A

Shipping Length of Unit

33.73ft in

C

Shipping Height of Unit

10.5ft in

I

Max Cutting Height

34.89ft in

J

Max Loading Height

25.5ft in

K

Max Reach Along Ground

36.8ft in

M

Max Digging Depth

25.94ft in

Dimensions

B

Width to Outside of Tracks

10.47ft in

D

Length of Track on Ground

13.16ft in

E

Ground Clearance

1.77ft in

G

Height to Top of Cab

10.41ft in

H

Tail Swing Radius

9.68ft in

Undercarriage

F

Track Gauge

8.5ft in

N

Shoe Size

23.63in


Specifications

Engine

Number of Cylinders

6

Engine Model

CNH 667TA/EEC

Net Power

201hp

Power Measured @

2100rpm

Displacement

408.9cu in

Max Torque

627lb ft

Torque Measured @

1400rpm

Operational

Operating Weight

69577.9lb

Fuel Capacity

118.1gal

Cooling System Fluid Capacity

6.1gal

Hydraulic System Fluid Capacity

74gal

Engine Oil Capacity

4.5gal

Operating Voltage

24V

Alternator Supplied Amperage

70amps

Hydraulic System Relief Valve Pressure

4974.8psi

Hydraulic Pump Flow Capacity

127.4gal/min

Swing Mechanism

Swing Speed

11rpm

Undercarriage

Shoe Size

23.7in

Number of Carrier Rollers per Side

2

Number of Track Rollers per Side

9

Ground Pressure

8.8psi

Max Travel Speed

3.5mph

Track Gauge

8.5ft in

Buckets

Reference Bucket Capacity

0.8yd3

Minimum Bucket Capacity

0.8yd3

Maximum Bucket Capacity

2.2yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

momoblock boom / stick 2100mm

Shipping Height of Unit

11.5ft in

Shipping Length of Unit

34.4ft in

Max Digging Depth

20.6ft in

Max Reach Along Ground

31.6ft in

Max Cutting Height

32ft in

Max Loading Height

22.9ft in

Max Vertical Wall Digging Depth

19.8ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

monobloc boom / stick 2400mm

Shipping Height of Unit

11.2ft in

Shipping Length of Unit

34.1ft in

Max Digging Depth

21.6ft in

Max Reach Along Ground

32.6ft in

Max Cutting Height

32.7ft in

Max Loading Height

23.4ft in

Max Vertical Wall Digging Depth

20.9ft in

Boom/Stick Option (HEX) 3

Boom/Stick Option (HEX) 3

monobloc boom / stick 3100mm

Shipping Height of Unit

10.5ft in

Shipping Length of Unit

33.7ft in

Max Digging Depth

23.8ft in

Max Reach Along Ground

34.7ft in

Max Cutting Height

33.6ft in

Max Loading Height

24.3ft in

Max Vertical Wall Digging Depth

23.3ft in

Boom/Stick Option (HEX) 4

Boom/Stick Option (HEX) 4

monobloc boom / stick 3750mm

Shipping Height of Unit

10.5ft in

Shipping Length of Unit

33.8ft in

Max Digging Depth

26ft in

Max Reach Along Ground

36.8ft in

Max Cutting Height

34.9ft in

Max Loading Height

25.5ft in

Max Vertical Wall Dig Depth

25.5ft in

Dimensions

Width to Outside of Tracks

10.5ft in

Height to Top of Cab

10.5ft in

Ground Clearance

1.8ft in

Removal Counterweight Clearance

4.1ft in

Tail Swing Radius

9.7ft in

Length of Track on Ground

13.2ft in
