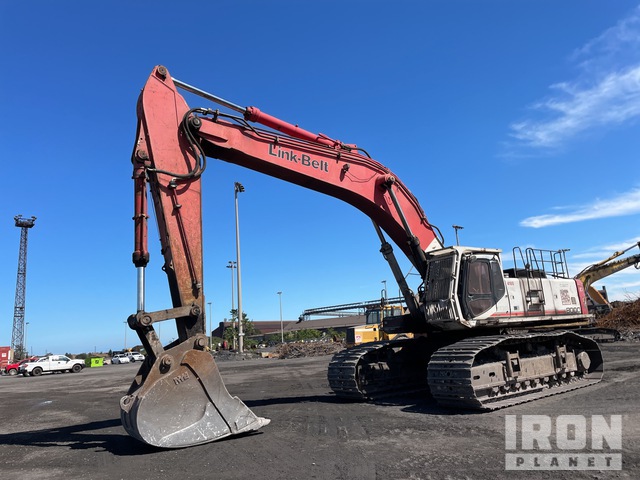

Link-Belt 8000 Quantum Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (Hex) 1

A

Shipping Length Of Unit

42.69ft in

C

Shipping Height Of Unit

16.57ft in

I

Max Cutting Height

38.59ft in

J

Max Loading Height

25.89ft in

K

Max Reach Along Ground

39.34ft in

L

Max Vertical Wall Digging Depth

13.95ft in

M

Max Digging Depth

23.07ft in

Boom/Stick Option (Hex) 1

Mass Boom 23\'9\" (7250mm) / Stick 9\'9\" (2980mm)

Boom/Stick Option (Hex) 2

A

Shipping Length Of Unit

46.13ft in

I

Max Cutting Height

42.62ft in

C

Shipping Height Of Unit

15.59ft in

J

Max Loading Height

29.2ft in

K

Max Reach Along Ground

43.61ft in

L

Max Vertical Wall Digging Depth

20.97ft in

M

Max Digging Depth

26.28ft in

Boom/Stick Option (Hex) 2

Boom 27\'7\" (8400mm) / Stick 9\'9\" (2980mm)

Boom/Stick Option (Hex) 3

A

Shipping Length Of Unit

46.13ft in

I

Max Cutting Height

42.36ft in

J

Max Loading Height

29.27ft in

C

Shipping Height Of Unit

15.59ft in

K

Max Reach Along Ground

45.41ft in

L

Max Vertical Wall Digging Depth

21.13ft in

M

Max Digging Depth

28.55ft in

Boom/Stick Option (Hex) 3

Boom 27\'7\" (8400mm) / Stick 12\'0\" (3660mm)

Boom/Stick Option (Hex) 4

A

Shipping Length Of Unit

46.13ft in

C

Shipping Height Of Unit

15.59ft in

I

Max Cutting Height

44.59ft in

J

Max Loading Height

31.17ft in

K

Max Reach Along Ground

48.1ft in

M

Max Digging Depth

31.01ft in

Boom/Stick Option (Hex) 4

Boom 27\'7\" (8400mm) / Stick 14\'6\" (4420mm)

Max Vertical Wall Dig Depth

25.37ft in

Boom/Stick Option (Hex) 5

A

Shipping Length Of Unit

46.13ft in

C

Shipping Height Of Unit

15.59ft in

I

Max Cutting Height

47.84ft in

J

Max Loading Height

34.13ft in

K

Max Reach Along Ground

52.24ft in

M

Max Digging Depth

34.95ft in

Boom/Stick Option (Hex) 5

Boom 27\'7\" (8400mm) / Stick 18\'5\" (5610mm)

Max Vertical Wall Dig Depth

30.16ft in

Dimensions

E

Ground Clearance

2.92ft in

B

Width To Outside Of Tracks

13.78ft in

D

Length Of Track On Ground

16.64ft in

H

Tail Swing Radius

13.36ft in

Removal Counterweight Clearance

5.25ft in

Undercarriage

F

Track Gauge

11.32ft in

N

Shoe Size

29.53in

Number Of Carrier Rollers Per Side

3

Ground Pressure

13.79psi

Number Of Shoes Per Side

51

Max Travel Speed

2.6mph

Number Of Track Rollers Per Side

9


Specifications

Engine

Number Of Cylinders

6

Engine Make

2347

Engine Model

N14-C460-1.5c

Net Power

438hp

Power Measured @

1800rpm

Max Torque

1462lb ft

Displacement

855cu in

Aspiration

Turbocharged

Torque Measured @

1400rpm

Operational

Operating Weight

176400lb

Fuel Capacity

237.8gal

Cooling System Fluid Capacity

24.4gal

Hydraulic System Fluid Capacity

190.3gal

Operating Voltage

24V

Engine Oil Capacity

10.7gal

Swing Drive Fluid Capacity

7.2gal

Alternator Supplied Amperage

75amps

Hydraulic System Relief Valve Pressure

4977psi

Hydraulic Pump Flow Capacity

264.2gal/min

Swing Mechanism

Swing Speed

7.6rpm

Swing Torque

177690lb ft

Buckets

Reference Bucket Capacity

4yd3

Minimum Bucket Capacity

1.8yd3

Maximum Bucket Capacity

6yd3
