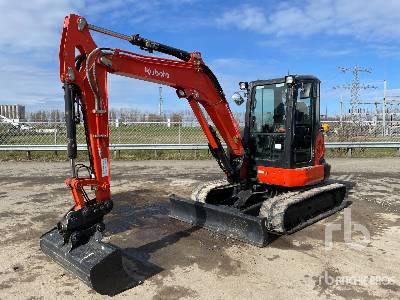

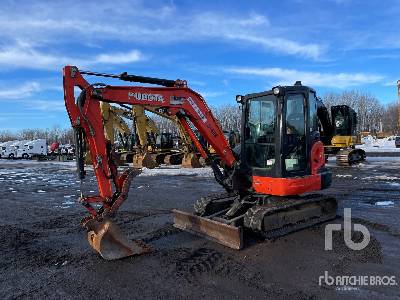

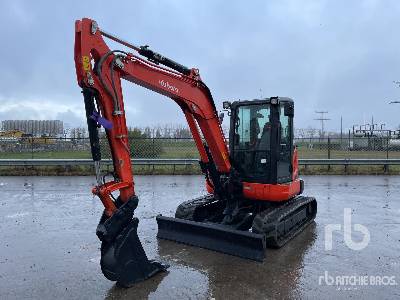

Kubota U27-4HG Mini Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
L
Max Vertical Wall Digging Depth
7.68ft in
M
Max Digging Depth
9.42ft in
Mximum Dig Radius
188.59in
Max.Dumping Height
9.98ft in
Max Digging Height
14.51ft in
Dimensions
E
Ground Clearance
1.01ft in
G
Height To Top Of Cab
7.88ft in
H
Tail Swing Radius
2.6ft in
Overall Height
7.94ft in
Overall Length
13.46ft in
Overall Width
59.06in
Crawler Length
6.53ft in
Undercarriage
N
Shoe Size
11.82in
Ground Pressure
3.44psi
Specifications
Engine
Engine Make
Kubota
Engine Model
D1105-BH
Gross Power
20.8hp
Net Power
20hp
Power Measured @
2400rpm
Displacement
4180.2cu in
Model Name
U27-4
Operational
Auxiliary Hydraulic Flow
12.7gal/min
Travel Speed, Low Range
1.7mph
Travel Speed, High Range
2.7mph
Fuel Capacity
8.8gal
Hydraulic System Fluid Capacity
9.8gal
Hydraulic Pump Flow Capacity
5.9gal/min
Swing Mechanism
Swing Speed
9.8rpm
Blade
Maximum Drop Below Ground
1.1ft in
Blade Lift Height
14.2in
Boom
Boom Swing Left
75degrees
Boom Swing Right
55degrees
