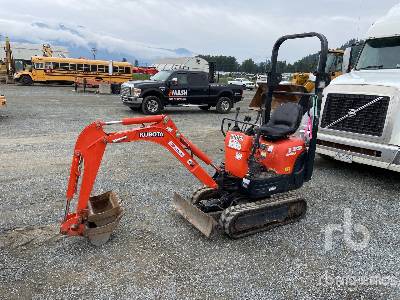

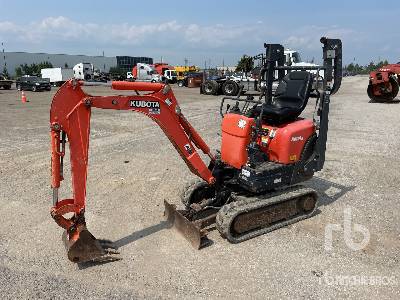

Kubota K008-3 Mini Excavator

Kubota K008-3 Mini Excavator Specs front
Kubota K008-3 Mini Excavator Specs front
Kubota K008-3 Mini Excavator Specs side
Kubota K008-3 Mini Excavator Specs side
Kubota K008-3 Mini Excavator Specs extended
Kubota K008-3 Mini Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

9 ft in

C

Shipping Height of Unit

7.34 ft in

I

Max Cutting Height

9.42 ft in

J

Max Loading Height

6.67 ft in

K

Max Reach Along Ground

9.92 ft in

L

Max Vertical Wall Digging Depth

4.52 ft in

M

Max Digging Depth

5.63 ft in

Dimensions

B

Width to Outside of Tracks

2.3 ft in

D

Length of Track on Ground

- -

E

Ground Clearance

0.5 ft in

G

Height to Top of Cab

2.89 ft in

H

Tail Swing Radius

2.5 ft in

Undercarriage

N

Shoe Size

7.09 in


Specifications

Engine

Number of Cylinders

3

Engine Make

2334

Engine Model

KUBOTA D722-EBH

Engine Type

Water cooled

Gross Power

7.7 hp

Net Power

7.5 hp

Power Measured @

2050 rpm

Displacement

44 cu in

Fuel Type

Diesel

Operational

Operating Weight

2200 lb

Fuel Capacity

3.2 gal

Hydraulic System Fluid Capacity

3.3 gal

Hydraulic Pump Flow Capacity

5.6 gal/min

Electrical

Alternator

Lighting

Front working

Battery voltage

12 VDC 30 AH

Battery capacity

150 CCA

Engine shut-off

Key

Block heater

None

Swing Mechanism

Swing Speed

8.3 rpm

Undercarriage

Shoe Size

7.1 in

Ground Pressure

3.5 psi

Max Travel Speed

2.5 mph

Drawbar Pull

1390 lb

Buckets

Reference Bucket Capacity

0.1 yd3

Boom/Stick Option (HEX) 1

Mximum dig radius

121.1 in

Shipping Height of Unit

7.4 ft in

Shipping Length of Unit

9 ft in

Max Digging Depth

5.7 ft in

Max Reach Along Ground

10 ft in

Max Cutting Height

9.5 ft in

Max Loading Height

6.7 ft in

Max Vertical Wall Digging Depth

4.6 ft in

Max.Dumping Height

6.7 ft in

Max Digging Height

9.5 ft in

Max. breakout force Bucket

2200 lb

Max. breakoutArm

1010 lb

Dimensions

Shoe width

0.6 ft in

Width to Outside of Tracks

2.3 ft in

Height to Top of Cab

2.9 ft in

Ground Clearance

0.5 ft in

Tail Swing Radius

2.5 ft in


Compare similar models

Manufacturer / Model

Net Power

Operating Weight

Reference Bucket Capacity

Net Power

8 hp

Operating Weight

2337 lb

Reference Bucket Capacity

0.1 yd3
