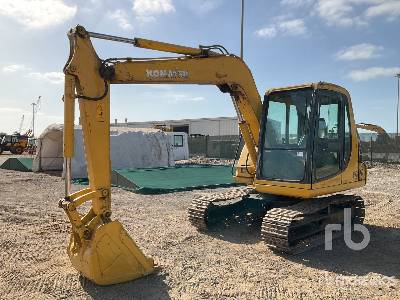

Komatsu PC60-7 Midi Excavator

Komatsu PC60-7 Midi Excavator Specs front
Komatsu PC60-7 Midi Excavator Specs front
Komatsu PC60-7 Midi Excavator Specs side
Komatsu PC60-7 Midi Excavator Specs side
Komatsu PC60-7 Midi Excavator Specs extended
Komatsu PC60-7 Midi Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

19.95 ft in

C

Shipping Height of Unit

8.5 ft in

I

Max Cutting Height

23.46 ft in

J

Max Loading Height

16.46 ft in

K

Max Reach Along Ground

20.41 ft in

L

Max Vertical Wall Digging Depth

11.5 ft in

M

Max Digging Depth

13.46 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

20.03 ft in

C

Shipping Height of Unit

9.29 ft in

I

Max Cutting Height

23.36 ft in

J

Max Loading Height

16.51 ft in

K

Max Reach Along Ground

22.22 ft in

L

Max Vertical Wall Digging Depth

12.49 ft in

M

Max Digging Depth

15.1 ft in

Dimensions

B

Width to Outside of Tracks

7.06 ft in

D

Length of Track on Ground

6.99 ft in

E

Ground Clearance

1.15 ft in

G

Height to Top of Cab

8.5 ft in

H

Tail Swing Radius

5.75 ft in

Undercarriage

F

Track Gauge

5.58 ft in

N

Shoe Size

17.72 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2238

Engine Model

4D102E

Gross Power

53.7 hp

Power Measured @

1750 rpm

Displacement

239.3 cu in

Operational

Operating Weight

13845.1 lb

Fuel Capacity

34.4 gal

Hydraulic System Fluid Capacity

15.1 gal

Hydraulic System Relief Valve Pressure

3560 psi

Hydraulic Pump Flow Capacity

41 gal/min

Swing Mechanism

Swing Speed

12 rpm

Undercarriage

Shoe Size

17.8 in

Ground Pressure

4.3 psi

Max Travel Speed

2.8 mph

Track Gauge

5.6 ft in

Buckets

Reference Bucket Capacity

0.4 yd3

Minimum Bucket Capacity

0.2 yd3

Maximum Bucket Capacity

0.5 yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom 12'2" (3710mm)/Stick 5'5" (1650mm)

Shipping Height of Unit

8.5 ft in

Shipping Length of Unit

20 ft in

Max Digging Depth

13.5 ft in

Max Reach Along Ground

20.5 ft in

Max Cutting Height

23.5 ft in

Max Loading Height

16.5 ft in

Max Vertical Wall Digging Depth

11.5 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Boom 12'2" (3710mm)/Stick 7'5" (2250mm)

Shipping Height of Unit

9.3 ft in

Shipping Length of Unit

20.1 ft in

Max Digging Depth

15.1 ft in

Max Reach Along Ground

22.3 ft in

Max Cutting Height

23.4 ft in

Max Loading Height

16.6 ft in

Max Vertical Wall Digging Depth

12.5 ft in

Dimensions

Width to Outside of Tracks

7.1 ft in

Height to Top of Cab

8.5 ft in

Ground Clearance

1.2 ft in

Removal Counterweight Clearance

2.5 ft in

Tail Swing Radius

5.8 ft in

Length of Track on Ground

7 ft in
