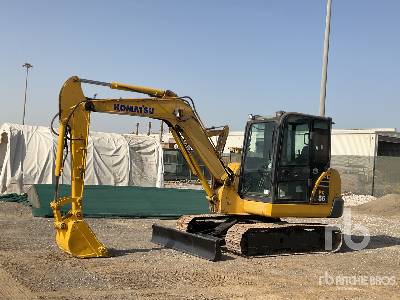

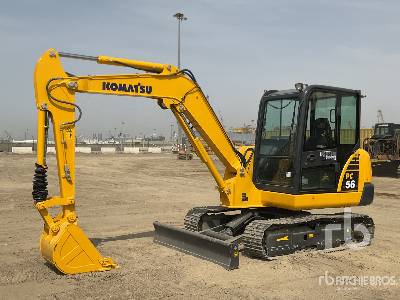

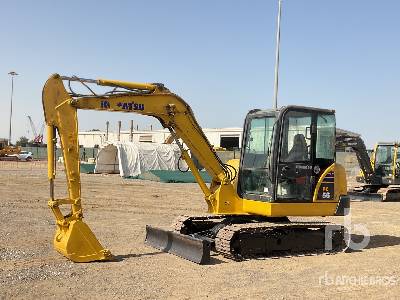

Komatsu PC130-6 Mini Excavator

Komatsu PC130-6 Mini Excavator Specs front
Komatsu PC130-6 Mini Excavator Specs front
Komatsu PC130-6 Mini Excavator Specs side
Komatsu PC130-6 Mini Excavator Specs side
Komatsu PC130-6 Mini Excavator Specs extended
Komatsu PC130-6 Mini Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

24.91 ft in

C

Shipping Height of Unit

8.91 ft in

I

Max Cutting Height

27.38 ft in

J

Max Loading Height

19.38 ft in

K

Max Reach Along Ground

25.58 ft in

L

Max Vertical Wall Digging Depth

14.83 ft in

M

Max Digging Depth

16.79 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

24.92 ft in

C

Shipping Height of Unit

8.91 ft in

I

Max Cutting Height

28.25 ft in

J

Max Loading Height

20.25 ft in

K

Max Reach Along Ground

26.81 ft in

L

Max Vertical Wall Digging Depth

16.21 ft in

M

Max Digging Depth

18.12 ft in

Boom/Stick Option (HEX) 3

A

Shipping Length of Unit

24.64 ft in

C

Shipping Height of Unit

10.09 ft in

I

Max Cutting Height

29.43 ft in

J

Max Loading Height

21.45 ft in

K

Max Reach Along Ground

28.43 ft in

L

Max Vertical Wall Digging Depth

17.59 ft in

M

Max Digging Depth

19.74 ft in

Dimensions

B

Width to Outside of Tracks

8.08 ft in

D

Length of Track on Ground

9.03 ft in

E

Ground Clearance

1.32 ft in

G

Height to Top of Cab

8.91 ft in

H

Tail Swing Radius

6.99 ft in

Undercarriage

F

Track Gauge

6.44 ft in

N

Shoe Size

27.56 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2238

Engine Model

S4D102E

Net Power

86 hp

Power Measured @

2200 rpm

Displacement

239.3 cu in

Aspiration

Turbocharged

Operational

Operating Weight

5931 lb

Fuel Capacity

60.8 gal

Cooling System Fluid Capacity

4.8 gal

Hydraulic System Fluid Capacity

26.5 gal

Engine Oil Capacity

4.3 gal

Swing Drive Fluid Capacity

0.7 gal

Hydraulic System Relief Valve Pressure

4622.6 psi

Hydraulic Pump Flow Capacity

59.8 gal/min

Swing Mechanism

Swing Speed

12 rpm

Undercarriage

Number of Shoes per Side

42

Shoe Size

27.6 in

Number of Carrier Rollers per Side

1

Number of Track Rollers per Side

7

Ground Pressure

4.4 psi

Max Travel Speed

3.5 mph

Drawbar Pull

22487 lb

Track Gauge

6.5 ft in

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

boom w/ stick 2100mm

Shipping Height of Unit

9 ft in

Shipping Length of Unit

25 ft in

Max Digging Depth

16.8 ft in

Max Reach Along Ground

25.6 ft in

Max Cutting Height

27.4 ft in

Max Loading Height

19.4 ft in

Max Vertical Wall Digging Depth

14.9 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

boom w/ stick 2500mm

Shipping Height of Unit

9 ft in

Shipping Length of Unit

25 ft in

Max Digging Depth

18.2 ft in

Max Reach Along Ground

26.9 ft in

Max Cutting Height

28.3 ft in

Max Loading Height

20.3 ft in

Max Vertical Wall Digging Depth

16.3 ft in

Boom/Stick Option (HEX) 3

Boom/Stick Option (HEX) 3

boom w/ stick 8970mm

Shipping Height of Unit

10.1 ft in

Shipping Length of Unit

24.7 ft in

Max Digging Depth

19.8 ft in

Max Reach Along Ground

28.5 ft in

Max Cutting Height

29.5 ft in

Max Loading Height

21.5 ft in

Max Vertical Wall Digging Depth

17.6 ft in

Dimensions

Width to Outside of Tracks

8.1 ft in

Height to Top of Cab

9 ft in

Ground Clearance

1.4 ft in

Removal Counterweight Clearance

2.9 ft in

Tail Swing Radius

7 ft in

Length of Track on Ground

9.1 ft in
