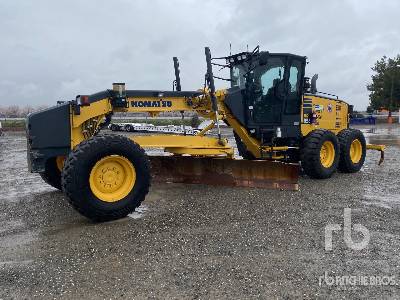

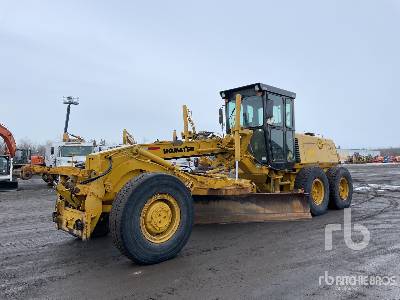

Komatsu GD670AW-2C Motor Grader

Komatsu GD670AW-2C Motor Grader Specs front
Komatsu GD670AW-2C Motor Grader Specs front
Komatsu GD670AW-2C Motor Grader Specs side
Komatsu GD670AW-2C Motor Grader Specs side
Komatsu GD670AW-2C Motor Grader Specs back
Komatsu GD670AW-2C Motor Grader Specs back
Units

Dimensions

Dimensions

A

Overall Length

27.71 ft in

B

Width Over Tires

8.02 ft in

D

Wheelbase

19.42 ft in

E

Rear Ground Clearance

0.92 ft in

G

Tandem Axle Wheelbase

5.09 ft in

H

Blade Base

8.17 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2238

Engine Model

S6D114E

Power Measured @

2500 rpm

Net Power Gear 5-6

203.9 hp

Max Power

203.9 hp

Displacement

504.7 cu in

Operational

Std Operation Weight - Total

34568.5 lb

Fuel Capacity

89.9 gal

Tire Size

14.00-24-10PR

Transmission

Number of Gears - Forward

6

Max Speed - Forward

26.2 mph

Max Speed - Reverse

14.7 mph

Front Axle

Ground Clearance

1 ft in

Moldboard

Moldboard Width

12.1 ft in

Moldboard Height

28 in

Dimensions

Height to Top of Isomount Cab

10.2 ft in

Overall Length

27.8 ft in

Width Over Tires

8.1 ft in

Wheelbase

19.5 ft in

Blade Base

8.2 ft in

Tandem Axle Wheelbase

5.1 ft in

Rear Ground Clearance

1 ft in
