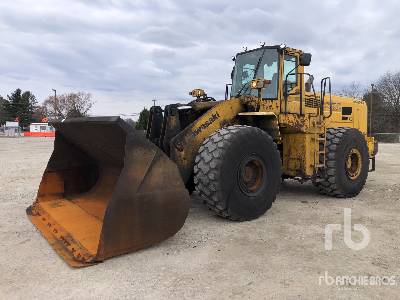

Kawasaki 115ZV-2 Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

11.88ft in

Dimensions

A

Length with Bucket on Ground

35.7ft in

B

Width Over Tires

11.68ft in

C

Height to Top of Cab

13.57ft in

D

Wheelbase

13.62ft in

E

Ground Clearance

1.68ft in

F

Hinge Pin - Max Height

16.41ft in

H

Reach at Max Lift and Dump

5.55ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2347

Engine Model

QSK19

Net Power

463hp

Gross Power

506hp

Power Measured @

1800rpm

Displacement

1159cu in

Torque Measured @

1300rpm

Max Torque

1908

Aspiration

turbocharged

Operational

Operating Weight

102710lb

Fuel Capacity

174.4gal

Hydraulic System Fluid Capacity

125.5gal

Engine Oil Fluid Capacity

16.2gal

Cooling System Fluid Capacity

38.4gal

Transmission Fluid Capacity

23.8gal

Front Axle/Diff Fluid Capacity

47.6gal

Rear Axle/Diff Fluid Capacity

47.6gal

Static Tipping Weight

71960lb

Turning Radius

27.5ft in

Operating Voltage

24V

Alternator Supplied Amperage

75amps

Rear Axle Oscillation

26degrees

Tire Size

35/65-33-VSDL (L-5)

Transmission

Transmission Type

full powershift

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

22.4mph

Max Speed - Reverse

4.7mph

Hydraulic System

Pump Type

gear type

Relief Valve Setting

3000

Pump Flow Capacity

61gal/min

Raise Time

8.4sec

Dump Time

1.7sec

Lower Time

5sec

Bucket

Breakout Force

86900lb

Dump Clearance at Max Raise

11.9ft in

Bucket Width

12.4ft in

Bucket Capacity - heaped

8.5yd3

Bucket Capacity - struck

7.5yd3

Dimensions

Length with Bucket on Ground

35.7ft in

Width Over Tires

11.7ft in

Height to Top of Cab

13.6ft in

Ground Clearance

1.7ft in

Wheelbase

13.7ft in

Hinge Pin - Max Height

16.5ft in

Reach at Max Lift and Dump

5.6ft in
