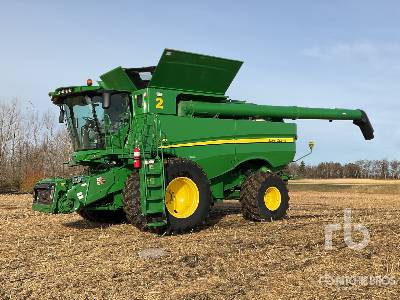

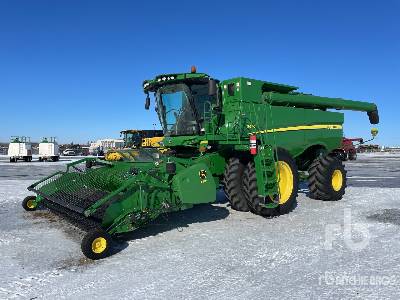

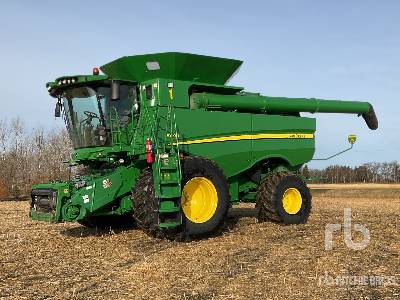

John Deere S690 Combine

John Deere S690 Combine Specs front
John Deere S690 Combine Specs front
John Deere S690 Combine Specs side
John Deere S690 Combine Specs side
John Deere S690 Combine Specs back
John Deere S690 Combine Specs back
Units

Specifications

Engine

Number of Cylinders

6

Engine Make

2240

Engine Model

John Deere PowerTech PSS Engine

Power

616.9 hp

Power Boost Power

49.7 hp

Power Measured @

2100 rpm

Displacement

823.9 cu in

Operational

Operating Weight w/o Attachment

42376 lb

Fuel Capacity

330 gal

Feeding

Conveyor Width

55 in

Conveyor Length

68 in

Conveyor Speed

Threshing

Rotor Diameter

30 in

Rotor Length

123 in

Rotor Speed - Low

210 rpm

Rotor Speed - High

1000 rpm

Concave Area

1705.1 in2

Separating

Separator Type

rotary

Separating Area

2390 in2

Discharge Grate Area

698 in2

Cleaning System

Total Cleaning Area

8680.1 in2

Cleaning Fan Speed - Low

620 rpm

Cleaning Fan Speed - High

1350 rpm

Grain Handling

Grain Tank Capacity

400.2 bu

Unloading Auger Length

6.9 ft in

Unloading Speed

3.8 bu/sec
