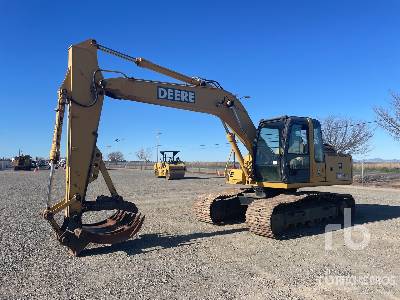

John Deere 992E LC Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
39ft in
C
Shipping Height Of Unit
11.83ft in
I
Max Cutting Height
33.7ft in
J
Max Loading Height
23.1ft in
K
Max Reach Along Ground
36.62ft in
L
Max Vertical Wall Digging Depth
17.52ft in
M
Max Digging Depth
23.82ft in
Boom/Stick Option (Hex) 1
Arm Length 9ft.6in. (2.9m )
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
38.67ft in
I
Max Cutting Height
36.68ft in
C
Shipping Height Of Unit
11.42ft in
J
Max Loading Height
25.53ft in
K
Max Reach Along Ground
40.26ft in
L
Max Vertical Wall Digging Depth
23.1ft in
M
Max Digging Depth
27.1ft in
Boom/Stick Option (Hex) 2
Arm Length 12ft 10in. (3.9m )
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
38.42ft in
I
Max Cutting Height
38.88ft in
J
Max Loading Height
28.78ft in
C
Shipping Height Of Unit
15.25ft in
K
Max Reach Along Ground
43.25ft in
L
Max Vertical Wall Digging Depth
27.73ft in
M
Max Digging Depth
29.89ft in
Boom/Stick Option (Hex) 3
Arm Length 16ft.1in. (4.9m )
Dimensions
E
Ground Clearance
2.42ft in
G
Height To Top Of Cab
10.54ft in
B
Width To Outside Of Tracks
11.95ft in
D
Length Of Track On Ground
14.67ft in
H
Tail Swing Radius
11.39ft in
Removal Counterweight Clearance
4.43ft in
Undercarriage
F
Track Gauge
9.5ft in
N
Shoe Size
30in
Max Travel Speed
3.4mph
Ground Pressure
8.69psi
Number Of Shoes Per Side
53
Number Of Carrier Rollers Per Side
3
Number Of Track Rollers Per Side
9
Drawbar Pull
79590lb
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6101A
Gross Power
296hp
Net Power
285hp
Power Measured @
2000rpm
Max Torque
955lb ft
Displacement
619cu in
Aspiration
Turbocharged and aftercooled
Torque Measured @
1300rpm
Operational
Operating Weight
97600lb
Fuel Capacity
156gal
Cooling System Fluid Capacity
10gal
Hydraulic System Fluid Capacity
137gal
Operating Voltage
24V
Engine Oil Capacity
9gal
Swing Drive Fluid Capacity
1.5gal
Alternator Supplied Amperage
45amps
Hydraulic System Relief Valve Pressure
4270psi
Hydraulic Pump Flow Capacity
95gal/min
Swing Mechanism
Swing Speed
9rpm
Buckets
Reference Bucket Capacity
2.5yd3
Minimum Bucket Capacity
1.6yd3
Maximum Bucket Capacity
4.2yd3
