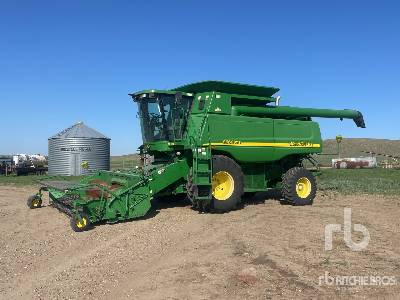

John Deere 9660 WTS Combine

John Deere 9660 WTS Combine Specs front
John Deere 9660 WTS Combine Specs front
John Deere 9660 WTS Combine Specs side
John Deere 9660 WTS Combine Specs side
John Deere 9660 WTS Combine Specs back
John Deere 9660 WTS Combine Specs back
Units

Specifications

Engine

Number of Cylinders

6

Engine Make

2240

Power

305 hp

Power Boost Power

338 hp

Power Measured @

2200 rpm

Displacement

494.3 cu in

Operational

Operating Weight w/o Attachment

30027 lb

Fuel Capacity

184.2 gal

Feeding

Conveyor Width

65.6 in

Conveyor Length

78 in

Conveyor Speed

520 rpm

Threshing

Rotor Diameter

26 in

Rotor Length

65.8 in

Rotor Speed - Low

240 rpm

Rotor Speed - High

990 rpm

Concave Area

1937.6 in2

Beater Grate Area

775.1 in2

Separating

Separator Type

6 walker + power separator

Separator Length

181.2 in

Separating Area

11935.1 in2

Cleaning System

Total Cleaning Area

7719.1 in2

Cleaning Fan Speed - Low

750 rpm

Cleaning Fan Speed - High

1600 rpm

Grain Handling

Grain Tank Capacity

312.2 bu

Unloading Auger Length

21.4 ft in

Unloading Speed

2.2 bu/sec

Unloading Discharge Height

14.2 ft in
