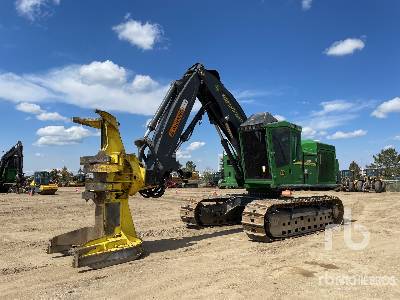

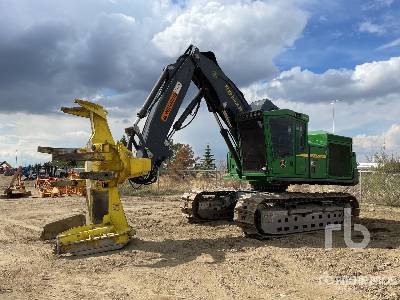

John Deere 953M Feller Buncher

Units

Dimensions

Dimensions

B

Overall Width

10.83 ft in

D

Length of Track on Ground

12.7 ft in

E

Ground Clearance

30 in

H

Tail Swing Radius

10.44 ft in

F

Track Gauge

8.83 ft in


Specifications

Driveline

Engine Model

PowerTech Plus 6090PSS

Engine Manufacturer

John Deere

Engine Output

329.9 hp

Engine Torque

1026.7 lb ft

Rated Speed

1900 rpm

Carrier Rollers - Each Side

2

Track Rollers - Each Side

9

Track Shoe Width

24.1 in

Capacities

Fuel Tank - diesel

285.4 gal

Alternator Output

Performance

Travel Speed

2.7 mph

Tractive Force

72388.5 lb

Lift capacity at max - reach

17570.9 lb

Pump Flow

140.6 gal/min

Pump Type

Var. axial-piston

Reference Harvesting Head

FR24B

Felling Diameter

24.5 in

Reference Head Saw Type

Disc

Reference Head Type

Felling

Cutting Radius - Maximum

29.2 ft in

Cutting Radius - Minimum

16 ft in

Cutting Swath Horizontal

13.2 ft in

Transmission

System Voltage

24 V

Weights

Operating Weight

72959.8 lb

Dimensions

Super Structure Width

10.1 ft in

Track Gauge

8.9 ft in

Height Over Cab

11.7 ft in

Length of Track on Ground

12.7 ft in

Ground Clearance

30 in

Carrier/Base Length

16.1 ft in

Overall Width

10.9 ft in

Tail Swing Radius

10.5 ft in
