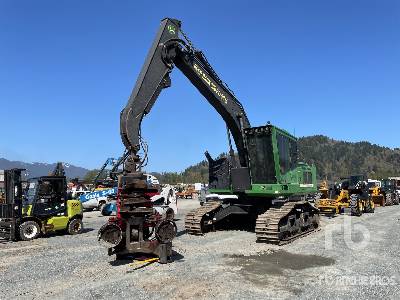

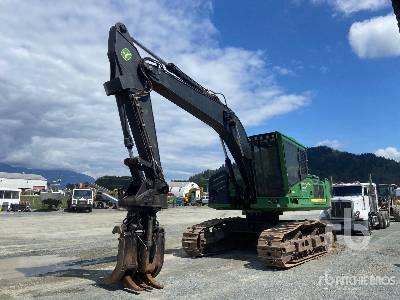

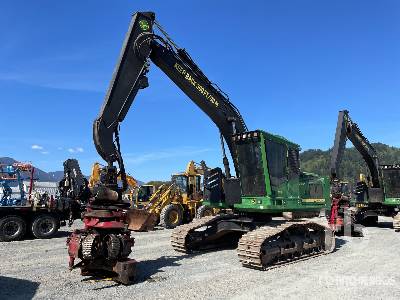

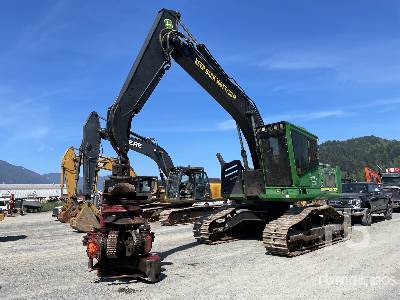

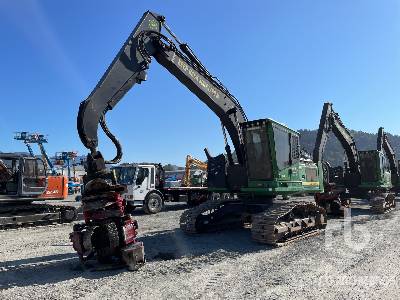

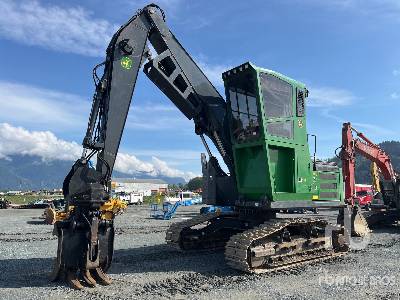

John Deere 853MH Harvester

Units

Dimensions

Dimensions

E

Ground Clearance

29.77 in


Specifications

Driveline

Engine Model

6090H

Displacement

549.3 cu in

Engine Manufacturer

John Deere

Engine Output

285.7 hp

Engine Torque

936.8 lb ft

Rated Speed

2000 rpm

Carrier Rollers - Each Side

2

Track Rollers - Each Side

9

Track Shoe Width

24.1 in

Capacities

Fuel Tank - diesel

229.9 gal

Alternator Output

100 amps

Number of Alternators

1

Performance

Travel Speed

2.7 mph

System Voltage

24 V

Slew Speed

6.7 rpm

Pump Flow

130.6 gal/min

Reference Harvesting Head

Waratah HTH622B

Felling Diameter

29.6 in

Cutting Radius - Maximum

29.1 ft in

Cutting Radius - Minimum

8.9 ft in

Delimbing Diameter

25.2 in

Cutting Swath Horizontal

20.2 ft in

Delimbing Feed Rate

5.7 m/sec

Main Pump

Var. piston

Weights

Weight - With Reference Head

71121.2 lb

Weight - Without Reference Head

66293 lb

Operating Weight

71121.2 lb

Dimensions

Super Structure Width

10.4 ft in

Slewing Angle

360 degrees

Height Over Cab

136.3 ft in

Width

3300 mm

Tailswing Radius

6.4 ft in

Track length on ground

150.8 ft in

Length of Tracks

16.1 ft in

Ground Clearance

29.8 in
