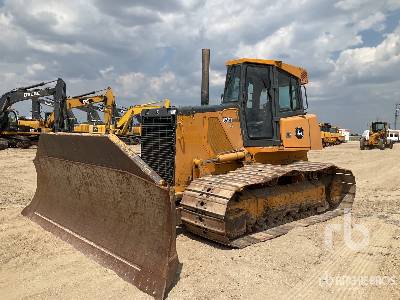

John Deere 850J Crawler Tractor

John Deere 850J Crawler Tractor Specs front
John Deere 850J Crawler Tractor Specs front
John Deere 850J Crawler Tractor Specs side
John Deere 850J Crawler Tractor Specs side
John Deere 850J Crawler Tractor Specs back
John Deere 850J Crawler Tractor Specs back
Units

Dimensions

Dimensions

A

Length w/ Blade

17.68 ft in

B

Width Over Tracks

8.17 ft in

C

Height to Top of Cab

10.42 ft in

D

Length of Track on Ground

9.09 ft in

E

Ground Clearance

1.35 ft in

Undercarriage

G

Track Gauge

6.17 ft in

H

Standard Shoe Size

24 in


Specifications

Engine

Number of Cylinders

6

Engine Make

2240

Engine Model

6090HT

Gross Power

192 hp

Net Power

185 hp

Power Measured @

1800 rpm

Max Torque

611 lb ft

Displacement

550 cu in

Torque Measured @

1500 rpm

Aspiration

Turbocharger w/ aftercooler

Operational

Operating Weight

39857.4 lb

Fuel Capacity

98 gal

Cooling System Fluid Capacity

9.2 gal

Engine Oil Capacity

7.1 gal

Hydraulic Fluid Capacity

27.9 gal

Powertrain Fluid Capacity

27.9 gal

Final Drives Fluid Capacity

4.4 gal

Operating Voltage

24 V

Alternator Supplied Amperage

80 amps

Transmission

Transmission Type

Hydrostatic

Max Speed - Forward

6.3 mph

Max Speed - Reverse

6.3 mph

Undercarriage

Ground Pressure

7.7 psi

Ground Contact Area

5232 in2

Standard Shoe Size

24 in

Number of Shoes per Side

40

Number of Track Rollers per Side

7

Track Pitch

8 in

Track Gauge

6.2 ft in

Hydraulic System

Pump type

Piston

Relief Valve Pressure

3625 psi

Pump Flow Capacity

46 gal/min

Standard Blade

Width

10.7 ft in

Height

56 in

Capacity

7.3 yd3

Cutting Depth

26.6 in

Dimensions

Length w/ Blade

17.7 ft in

Width Over Tracks

8.2 ft in

Height to Top of Cab

10.5 ft in

Length of Track on Ground

9.1 ft in

Ground Clearance

1.4 ft in
