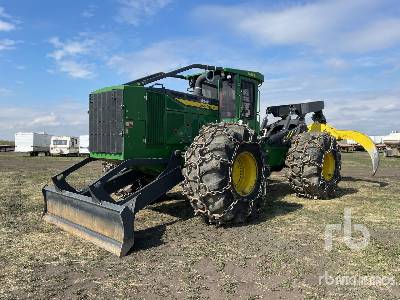

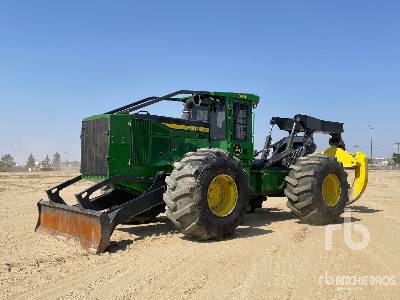

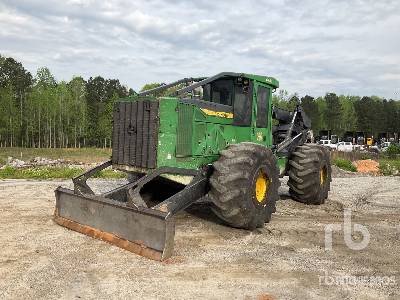

John Deere 848H Skidder
Units
Dimensions
Dimensions
A
Overall Length
26.49ft in
B
Overall Width
11.68ft in
C
Height To Top Of Cab
10.26ft in
E
Ground Clearance
2.02ft in
D
Wheelbase
12.42ft in
F
Max Height Of Boom
14.08ft in
H
Reach Of Grapple At Ground Level
10.21ft in
I
Tong Opening At Tips
10.84in
G
Height Of Grapple From Ground
4.89ft in
Max Blade Height
59.02in
Cable Width
0.75in
Drum Capacity At Cable Width
179ft in
Drum Diameter
8in
Grapple Capacity - Tongs Tip To Tip
16.15ft2
Blade Width
9.67ft in
Max Line Pull - Bare Drum
43388.13lb
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6068H
Gross Power
200hp
Power Measured @
2200rpm
Displacement
414cu in
Aspiration
turbocharged
Operational
Operating Weight
39300lb
Fuel Capacity
87gal
Hydraulic System Fluid Capacity
15gal
Operational Voltage
12V
Alternator Supplied Amperage
120amps
Axle Oscillation
30degrees
Steering Angle
45degrees
Tire Size
30.5-32
Transmission
Transmission Type
powershift
Number Of Forward Gears
6
Number Of Reverse Gears
3
Max Speed - Forward
13mph
Max Speed - Reverse
9.5mph
Hydraulic
Pump Type
variable displacement axial-piston
Pump Flow
42gal/min
Relief Valve Pressure
3100psi
