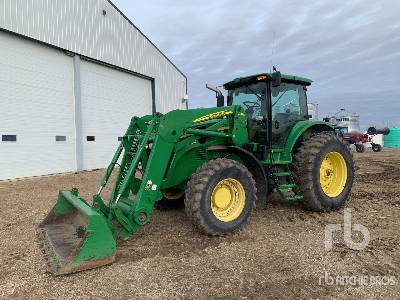

John Deere 7730 152 PTO hp 2WD Tractor

John Deere 7730 152 PTO hp 2WD Tractor Specs front
John Deere 7730 152 PTO hp 2WD Tractor Specs front
John Deere 7730 152 PTO hp 2WD Tractor Specs side
John Deere 7730 152 PTO hp 2WD Tractor Specs side
John Deere 7730 152 PTO hp 2WD Tractor Specs back
John Deere 7730 152 PTO hp 2WD Tractor Specs back
Units

Dimensions

Dimensions

D

Wheelbase

9.74 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2240

Gross Power

190 hp

PTO Power

153.3 hp

Power Measured @

2100 rpm

Max Torque

564 lb ft

Torque Measured @

1600 rpm

Displacement

415

Aspiration

turbocharged, air-to-air aftercooled

Operational

Fuel Capacity

103.1 gal

3 Point Hitch Lift Capacity @ 24 inches

10985.7 lb

Turning Radius

15.1 ft in

Tire Size Front - 2wd / 4wd

11.00-16(F2)

Rear Tires Size 2wd/4wd

480/80R42 (R1)

Transmission

Transmission Type

PowrQuad Plus

Number of Forward Gears

16

Number of Reverse Gears

16

Max Speed

19 mph

Hydraulic System

Relief Valve Setting

2914

Pump Flow Capacity

32 gal/min

Number of Remote Control Valves

2

Dimensions

Wheelbase

9.8 ft in
