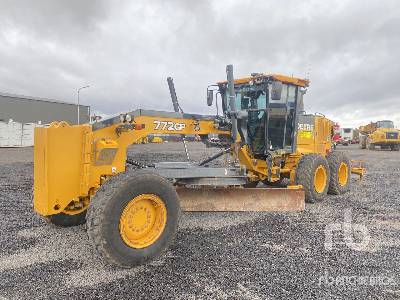

John Deere 772D Motor Grader

Motor Grader
Motor Grader
Motor Grader
Motor Grader
Motor Grader
Motor Grader
MODEL.UNITS

Dimensions

Dimensions

A

Overall Length

28.89ft in

B

Width Over Tires

8.24ft in

D

Wheelbase

20.08ft in

G

Tandem Axle Wheelbase

5.06ft in

F

Front Ground Clearance

1.93ft in

H

Blade Base

8.43ft in

Height To Top Of Isomount Cab

10.44ft in


Specifications

Engine

Number Of Cylinders

6

Net Power Gear 4-6

215hp

Engine Make

2240

Engine Model

6081H

Net Power Gear 1-2

185hp

Power Measured @

2000rpm

Net Power Gear 5-6

230hp

Torque Measured @

1000rpm

Max Power

230hp

Net Power Gears 7-8

215hp

Net Torque Gears 1-2

738lb ft

Net Torque Gears 3-4

778lb ft

Net Torque Gears 5-6

929lb ft

Net Torque Gears 7-8

929lb ft

Displacement

494cu in

Aspiration

Turbocharged with air-to-air aftercooler

Operational

Std Operation Weight - Front Axle

9620lb

Std Operation Weight - Rear Axle

24660lb

Hydraulic System Fluid Capacity

14gal

Std Operation Weight - Total

34280lb

Max Operation Weight - Front Axle

15840.3lb

Max Operation Weight - Rear Axle

32158.9lb

Max Operation Weight - Total

47999.1lb

Fuel Capacity

106gal

Cooling System Fluid Capacity

13gal

Transmission Fluid Capacity

6gal

Rear Diff/Final Drive Fluid Capacity

9.5gal

Circle Gearbox Fluid Capacity

1.5gal

Tandem Case Fluid Capacity (Each)

20gal

Tire Size

14.00R24 Radial PR

Operating Voltage

24V

Alternator Supplied Amperage

100amps

Steering

Articulation Angle

22degrees

Turning Radius

23.5ft in

Transmission

Transmission Type

Powershift with direct drive

Number Of Gears - Forward

8

Number Of Gears - Reverse

8

Max Speed - Forward

25.9mph

Max Speed - Reverse

25.9mph

Front Axle

Wheel Lean

20degrees

Oscillation - Total

32degrees

Ground Clearance

2ft in

Moldboard

Moldboard Width

12.1ft in

Moldboard Height

24.1in

Moldboard Thickness

0.9in

Side Shift Left

26.8in

Side Shift Right

26.8in

Blade Pull At Max Weight

43200lb

Hydraulic System

Pump Type

Variable displacement piston

Pump Flow

54.7gal/min

Relief Valve Pressure

2750psi

Circle

Diameter

59.9in

Rotation

360degrees

Shift Left

31in

Shift Right

28.6in

Max Reach Outside Tires - Left

82.5in

Max Reach Outside Tires - Right

82in

Max Lift Above Ground

18.5in

Blade Tip Angle - Front

42degrees

Blade Tip Angle - Rear

5degrees
